Pan & Tilt Camera Head Pipe Crawler Robot 360 Degree Axial Rotation Camera

Place of Origin China
Brand Name Trio-Vision
Model Number TVS-2000
Minimum Order Quantity 1
Packaging Details CARTON
Delivery Time 4-8 weeks
Payment Terms T/T
Supply Ability 20units per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pipe Diameter 150-1500mm Operation System Windows, Wincan Inside
Cable Drum Automatic, 300m Camera Head Pan & Tilt
Highlight

sewer inspection robot

,

robot cctv camera

Leave a Message
Product Description


Pan & Tilt Camera Head Pipe Crawler Robot 360 Degree Axial Rotation  using a high definition camera which makes the video inside the pipe clearer, the crawler moving in the pipe, the high-resolution camera in the front of the crawler can make full inspection and recording for the defects in the pipes, and transmit the images to the control unit via the cable synchronically, to realize remote monitor. The control unit takes Windows operation system, it can process and save the videos in field, and at the same time make judgement and output pipe inspection report, inclination and curve report.
TVS-2000 is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.



Features:

1. High definition CCD camera module

2. Resolution: 1920*1080P

3. Wifi wireless transmission

4. Powerful crawler drive

5. Interchangeable parts

6. Remote control App.





System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Automatic cable drum Manual cable drum
MK3 control unit PA500 portable movable power
Manhole hook, tool bag and other accesories

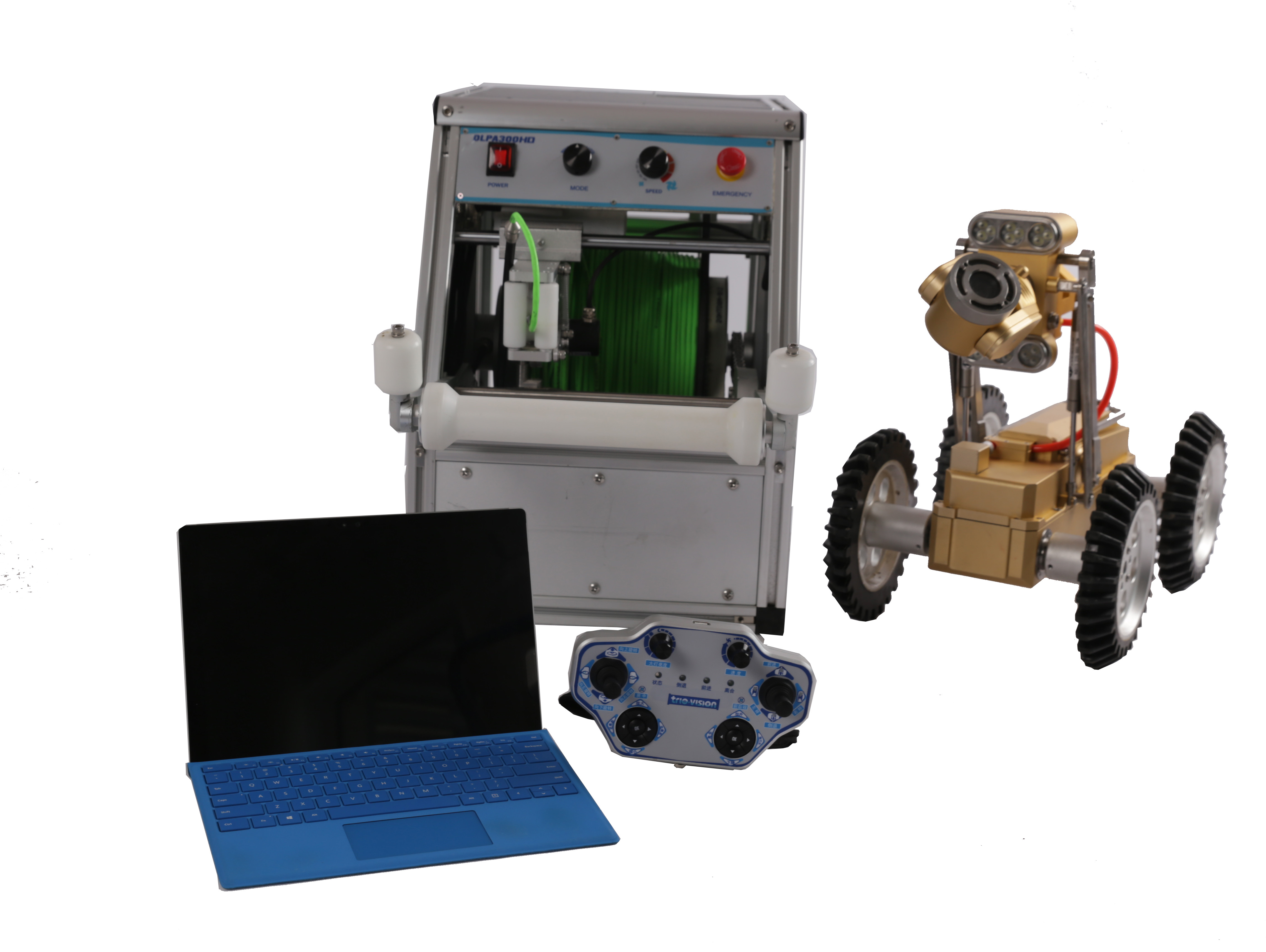

Pan & Tilt Camera Head Pipe Crawler Robot 360 Degree Axial Rotation Camera 0


Technical Parameter





Control Unit MK3



1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.

Pan&Tilt Camera JT2000



1,360 degree, no limited rotate

2. resolution: 1920*1080P
3,The lens heating can prevent fog
4,Camera light can be adjusted
5,Maximum Brightness upgrade 50%, More suitable for small diameter
6,Optional Laser, calibrate defect size

Cralwer TVS-800



1. Waterproof to IP68
2. Working temperature: -10ºC~50ºC
3. Suitable pipe diameter: 250mm~2000mm
4. Drive: two DC motor
5. Elevator: electric elevator
6. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
7. Speed: adjustable speed, max. 32m/min
8. Direction: forward, backward, left, right
9. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
10. Climbing: max. climb degree about 50° according to diffrerent pipe status
11. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

Automatic Cable Drum DLPA300



1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum

Fish-eye camera JT360(Optional)



1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.
Manual cable drum DLPM120(Optional) 1,Manual cable drum
2,standard length: 120m



Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.

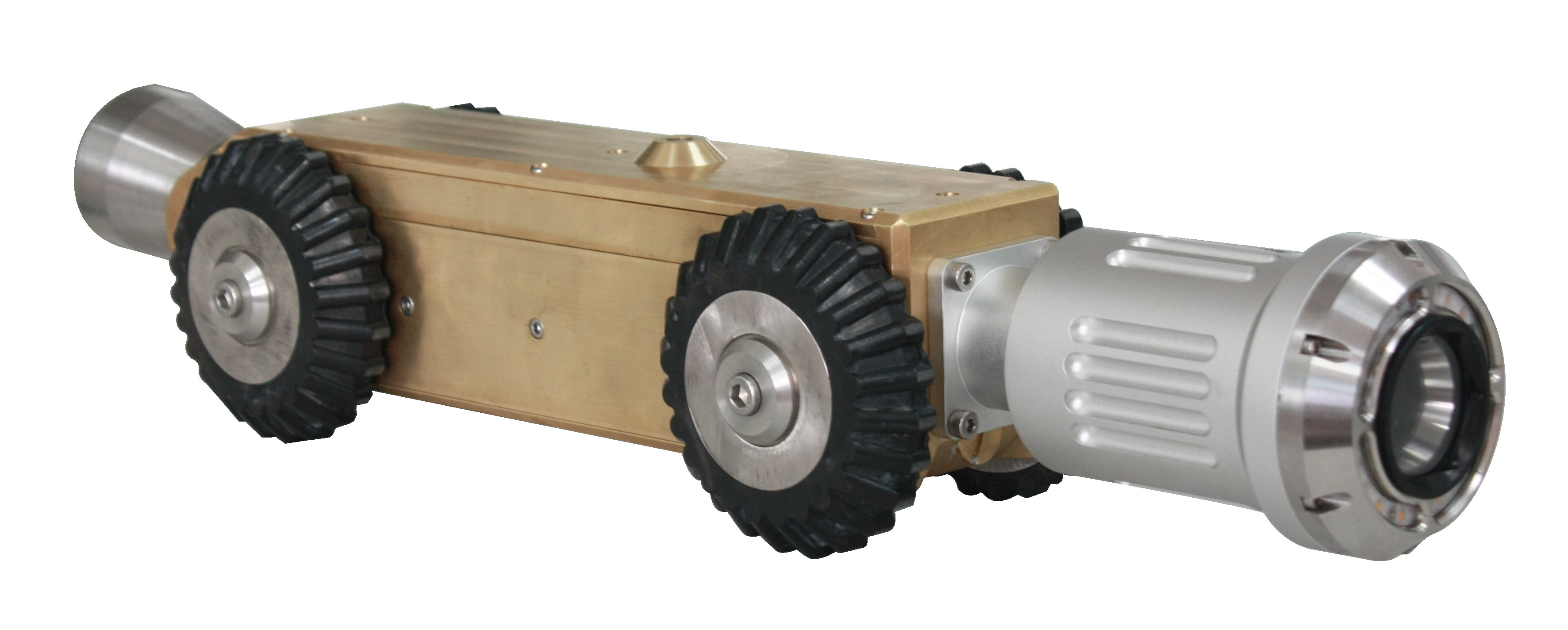

Pan & Tilt Camera Head Pipe Crawler Robot 360 Degree Axial Rotation Camera 1
