Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor

Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor
Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor

Large Image :  Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor

Product Details:

Place of Origin: CHINA
Brand Name: TRIO-VISION
Model Number: NC-150

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 4-8 weeks
Supply Ability: 100 units per year
Detailed Product Description
Pipe Diameter: 150-600mm Image Sensor: White Balance, Self-balance
Inspection Length: 200m Transmission: Wireless
Water Pressure: 20Mpa Waterproof: IP68
High Light:

water jet drain cleaner

,

high pressure drain cleaner

Wireless Drainage Pipe Inspection Jetting Video Camera NC-150


TVS-NC150 wireless jettiing camera is mainly used for inspection of urban drainage network, equipped with high pressure cleaning truck. The nozzle moves in the pipe by the high pressure of cleaning truck, do cleaning and inspection job at the same time. Transmission without cable, easy operation, safety and relable.



Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 0Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 1



System working diagram:

Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 2







Standard Configuration: Optional parts:
1,spray nozzle 1,carbon fiber pole

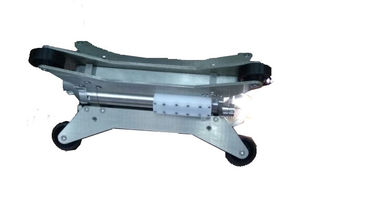

2,NC-Z receiver 2,un-adjustable but removable support for 300mm pipe diameter
3,10m cable
3, un-adjustable but removable support for 600mm pipe diameter
4,hand-held control unit

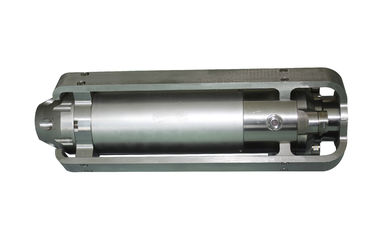

Main components:


Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 3



Parts and Components:

Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 4


Technical Parameter:



Nozzle Unit Control Unit
Image sensor: white balance
Resolution:480k pixel
Light : 2500Lm
Battery: 3hrs working time
Inspection length: 200m
Pipe diameter: 150-600mm
Water pressure: 20mpa
Flow: 210L/min
Waterproof: IP68
Weight: 10KG
Screen: 5.6"LCD, visible under strong light
Video storage, review and image capture functions available
On site audio input, audio storage and review functions
Power Supply: embedded battery
Storage Method: SD card or USB disc or portable hard disc
Weight:2Kg
Water and Dust Proof:IP63
Dimensions:220*140*45mm
Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 5 Safety Drain Cleaning Camera Wireless Jettiing Camera White Balance Image Sensor 6
