250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000
Minimum Order Quantity: 1
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 20units per month
Display: 8.4" LCD Screen Resolution: 1024*768
Camera Head: Pan & Tilt Cable Drum: Automatic
Pipe Diameter: 250-2000mm Controller: Windows System With Hard Disk
High Light:

camera inspection systems

,

sewer camera system

Mainline CCTV Inspection Crawler System with Rotate Camera TVS - 2000 is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT90 pan & tilt camera JT360 fish-eye camera
Automatic cable drum Manual cable drum
MK3 control unit PA500 portable movable power
Manhole hook, tool bag and other accesories





250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 0




The system is used for drainage/sewer pipe vdieo inspection, the control unit controls the crawler moving in the pipe, the high-resolution camera in the front of the crawler can make full inspection and recording for the defects in the pipes, and transmit the images to the control unit via the cable synchronically, to realize remote monitor. The control unit takes Windows operation system, it can process and save the videos in field, and at the same time make judgement and output pipe inspection report, inclination and curve report.


Control Unit MK3
1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.

250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 1

Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 2

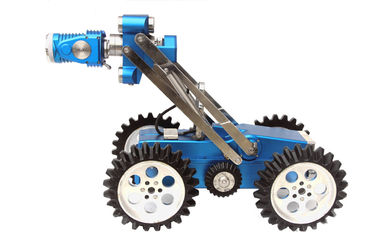

Cralwer TVS-800
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 3



Automatic Cable Drum DLPA300
1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum

250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 4
Fish-eye camera JT360
1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.

250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 5

Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.



250-2000mm Diameter Pipes CCTV Inspection System With Rotate Camera 6
