Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera

  • Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera
  • Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera
Place of Origin China
Brand Name Trio-Vision
Model Number TVS-2000
Minimum Order Quantity 1
Packaging Details CARTON
Delivery Time 4-8 weeks
Payment Terms T/T, L/C
Supply Ability 20units per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Camera Fish-eye Camera Rotation 360 Degree
Image 3D Image Cable Length 300m
Technology CANBUS Remote Control Available
High Light

remote robot camera

,

robotic pipe inspection camera
Leave a Message
Product Description

Fish-eye Camera Sewage Pipe Inspection Crawler Robotic System  contains two crawler system, which makes the inspection range from 150mm to 2000mm pipe diameter, the TVS-150 small crawler is used for 150-600mm dia. pipes, and TVS-800 large crawler is used for 250-2000mm dia. pipe, the camera can work on both crawlers and aumatic cable drum make the work easily.



Features:

1. Fish-eye camera, 360 view of pipe

2.2D exploded pipe view

3. 3D image and pipe module

4. 92pcs LED lamps

5. Anti-fogged camera lens

6. Brightless adjustable



Technical Parameter

Control Unit MK3 Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 0
  1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
  2. Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
  3. Camera position, elevator position in Graphs
  4. Inclination report in site.
  5. System status, work parameter can be query.

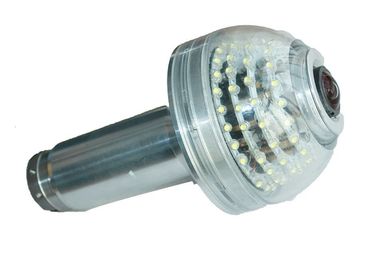

Fish-eye Camera JT-360 Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 1
  1. view angle: 0-360 angle
  2. resolution: 3 megapixel
  3. 92pcs lamps, 200lm
  4. sensitivity: 0.3Lux
  5. interface: connect with crawler directly
  6. 2D pipe explored analysis
  7. working temperature: -20ºC~65ºC
  8. waterproof: IP68



Automatic Cable Drum DLPA300 Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 2
  1. 6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
  2. Standard length: 200m,max. 300m
  3. Automatic cable drum

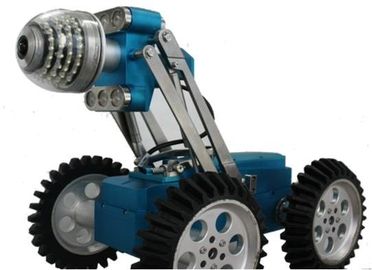

Cralwer TVS-800 Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 3
  1. Working temperature: -10ºC~50ºC
  2. Suitable pipe diameter: 250mm~2000mm
  3. Drive: two DC motor
  4. Elevator: electric elevator
  5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
  6. Speed: adjustable speed, max. 32m/min
  7. Direction: forward, backward, left, right
  8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
  9. Climbing: max. climb degree about 50° according to diffrerent pipe status
  10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-360 fish-eye camera JT-2000 pan and rotate camera
Automatic cable drum Manual cable drum
MK3 control unit PA500 portable movable power
  TVS150 mini crawler





Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 4





Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
Win7 System Robotic Crawler Pipe Inspection System Fish Eye Sewer Inspection Camera 5
