|Pipe Diameter:||150-1500mm||Operation System:||Windows, Wincan Inside|
|Cable Drum:||Automatic, 300m||Camera Head:||Pan & Tilt|
pipe inspection robot,
sewer inspection robot

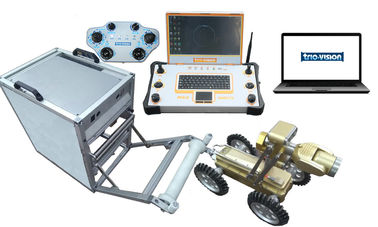

HD crawler system CCTV sewage pipe inspection robot TVS-2000 using a high definition camera which makes the video inside the pipe clearer, the crawler moving in the pipe, the high-resolution camera in the front of the crawler can make full inspection and recording for the defects in the pipes, and transmit the images to the control unit via the cable synchronically, to realize remote monitor. The control unit takes Windows operation system, it can process and save the videos in field, and at the same time make judgement and output pipe inspection report, inclination and curve report.
TVS-2000 is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.
1. High definition CCD camera module
2. Resolution: 1920*1080P
3. Wifi wireless transmission
4. Powerful crawler drive
5. Interchangeable parts
6. Remote control App.
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Automatic cable drum||Manual cable drum|
|MK3 control unit||PA500 portable movable power|
|Manhole hook, tool bag and other accesories|
Control Unit MK3
|1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2. resolution: 1920*1080P
|1. Waterproof to IP68
2. Working temperature: -10ºC~50ºC
3. Suitable pipe diameter: 250mm~2000mm
4. Drive: two DC motor
5. Elevator: electric elevator
6. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
7. Speed: adjustable speed, max. 32m/min
8. Direction: forward, backward, left, right
9. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
10. Climbing: max. climb degree about 50° according to diffrerent pipe status
11. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Automatic Cable Drum DLPA300
|1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum
Fish-eye camera JT360(Optional)
|1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.
|Manual cable drum DLPM120(Optional)||1,Manual cable drum
2,standard length: 120m
Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
