|Signal Transfer:||Wireless||Inspection Range:||100-1500mm|
|Camera Focus:||Auto Or Manual||Waterproof:||IP68|
pole mounted inspection camera,
wireless pipe inspection camera
Telescopic Pole Survey Camera 1920*1080P Digital High Resolution Sewer Drain pipe camera Xplorer-HD

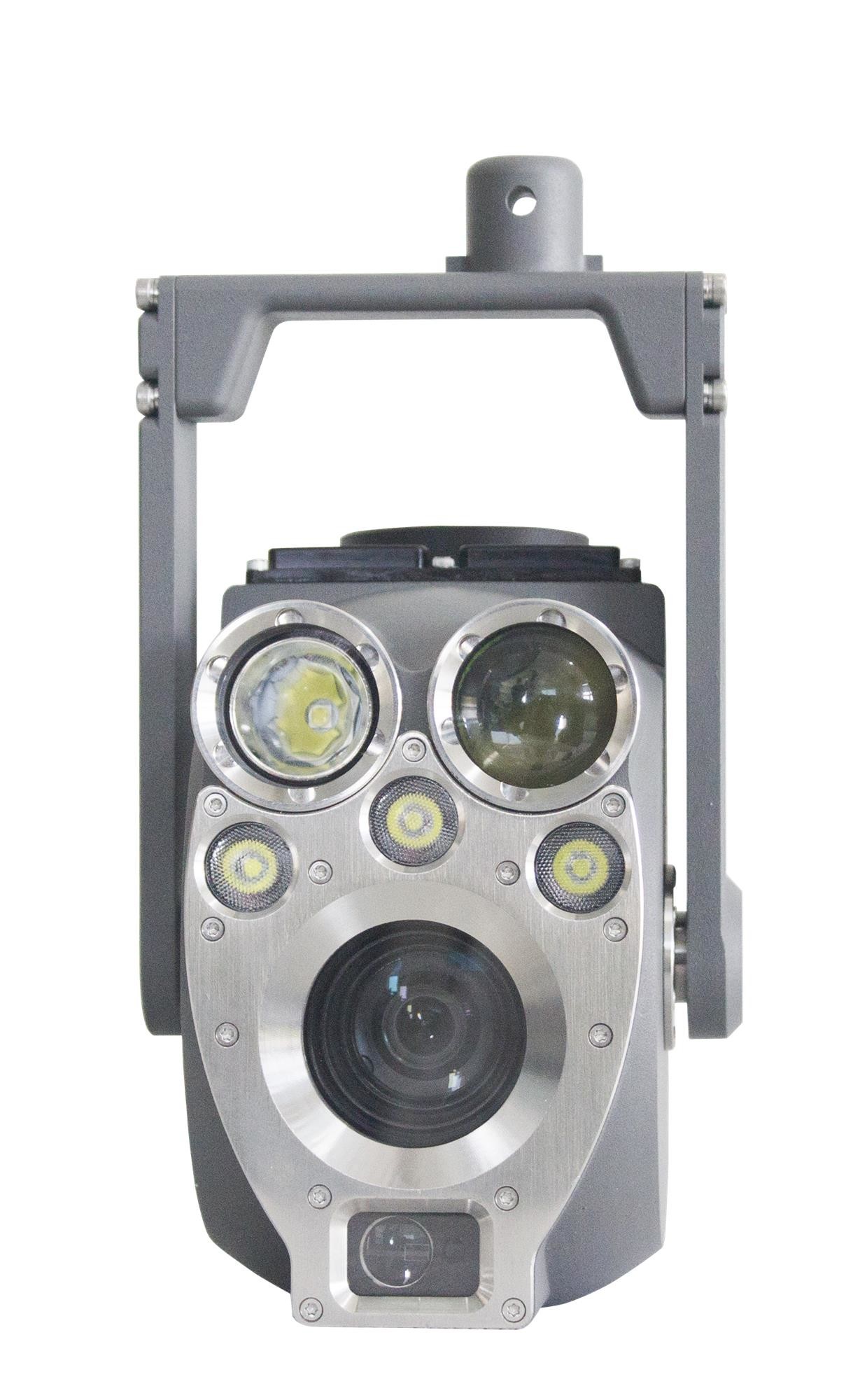

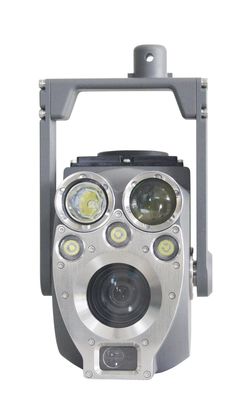

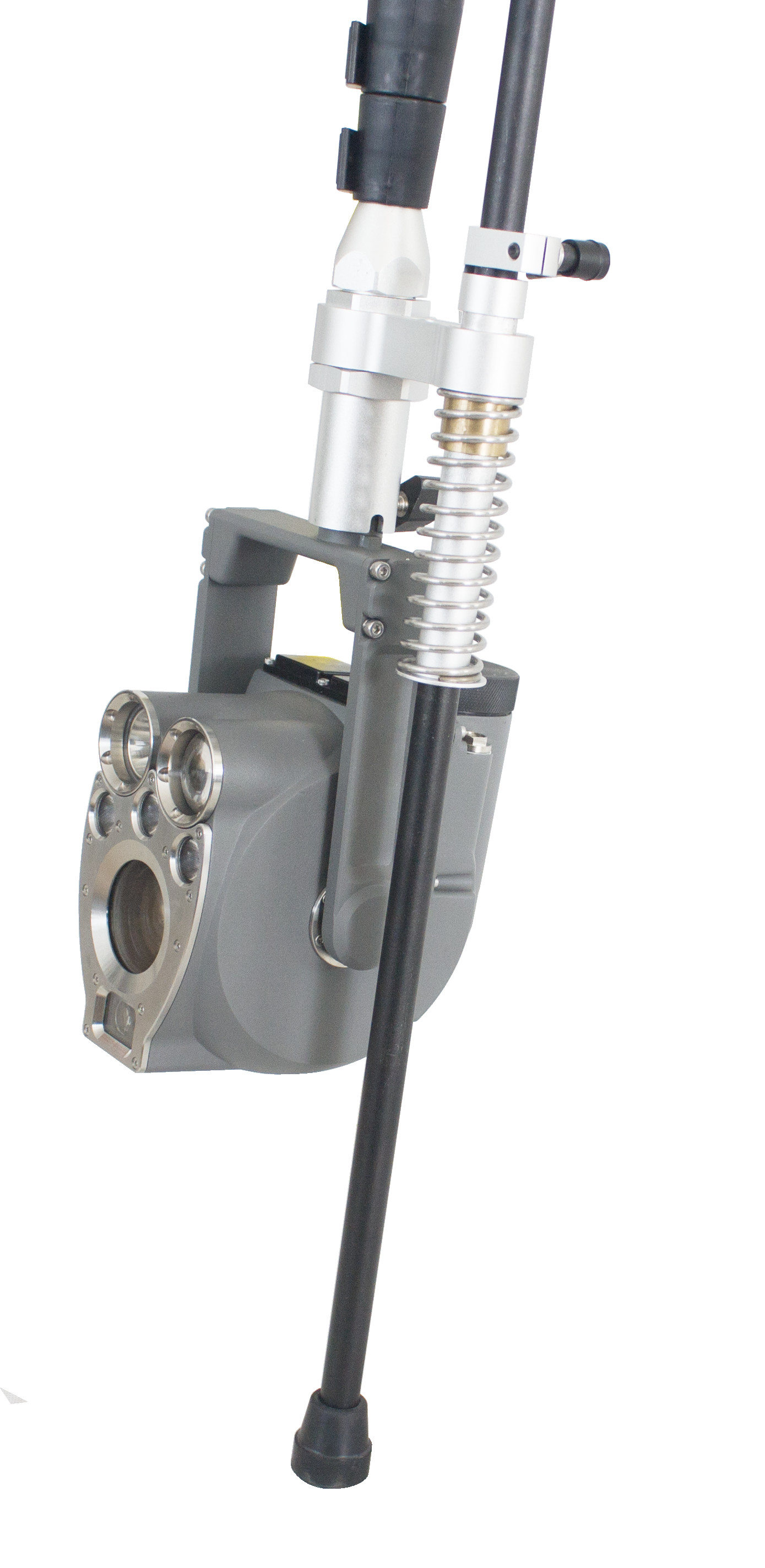

The High definition pole inspection camera can be used to locate defects or to identify a blockage at a manhole, access point or other entry point without entering the line or structure. The equipment incudes dual beam high-intensity discharge lights to provide maximum lighting capacities in all pipe conditions. The LED brightness has multiple user-selectable settings.
LED lights generate less heat, require lower power consumption, and provide brighter illumination than most another option. The product also has an optional laser distance measurement device, this feature is used to measure the distance to an object, the depth/width of a manhole, or the diameterof a pipe. The laser measurement option adds additional valuable enhanced information with accuracy within millimeters at 325 feet.
1. camera head
2. lithium battery
3. standard poles: 6m
4. Windows tablet
Digital high resolution: 1920*1080P
Replacement rechargeable Nimh battery
Designed to use a Windows 10 tablet PC in the field capturing the HD video and photos directly into the device for back up after the inspections are complete. Integrated control, display and storage in one. The light, zoom, focus, camera tile are controlled by finger touch.
Optional: Laser Distance Measuring Module
Precisely measure the object distance, with a precision of millimeter, which can help you position the pipe defects and provide exact distance for later engineering.
Measuring distance 0.1-100m, typical precision ±1mm.
Measuring frequency 20Hz, video overlay the measuring results.
