| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TRIO-VISION |
| Model Number: | TVS-120 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 4-8 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 40 units per months |
| Pipe Diameter: | 75-200mm | Camera Type: | Self-balance Camera |
|---|---|---|---|
| Lamp: | LED Lamp | Camera Diameter: | 72mm |
| High Light: | underground pipe inspection camera,push rod camera |
||
Pushrod Chimeny And Pipe Drain Inspection Camera Sewer Line Inspection TVS -120
TVS-120 pushrod pipe inspection system is a specia tool for inspecting pipeline located in municipal or commercial or residenial areas, with the diameter ranging from DN50 and typically up to DN150. As a portable tool, the system has high-definition video and is connected by WIFI for long distance inspection.
Features:
1. one touching video/audio recording and image capture
2. zoom function 1x10 levels
3. cable M/FT counter and text
4. 7 hours battery lift
5. 512Hz/640Hz/ 8KHz,/33KHz transmitter
6. self-levelling camera head
Specifications:
|
Part
|
Description | PN |
|
Control unit |
Andriod or Windows tablet control, built-in software to control the camera. Project OSD information input Self-leveling always Video storage and project information overlay Wifi direct connection, pair for special use Audio input for pipe defects
|
TVS50-ZKQ-001 |
|

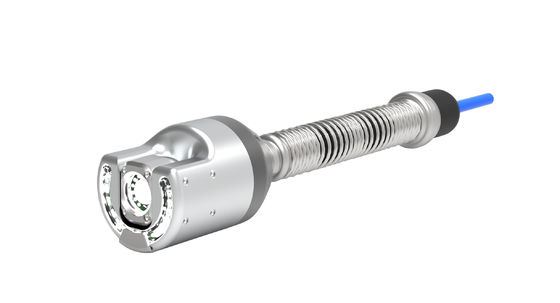

Camera |
Camera size: 75*123mm(D*L) Suitable pipe diameter: 75-200mm Video resolution: 1080P, 2 megapixels Self-leveling pan and tilt camera, Pan 360 degree, tilt 115 degree Waterproof: IP68 Stainless steel cavity with sapphire lens Adjustable LED
|
D70-HD |
|
|
For 100mm, 120mm, 200mm pipes | TG120-JZQ |
|

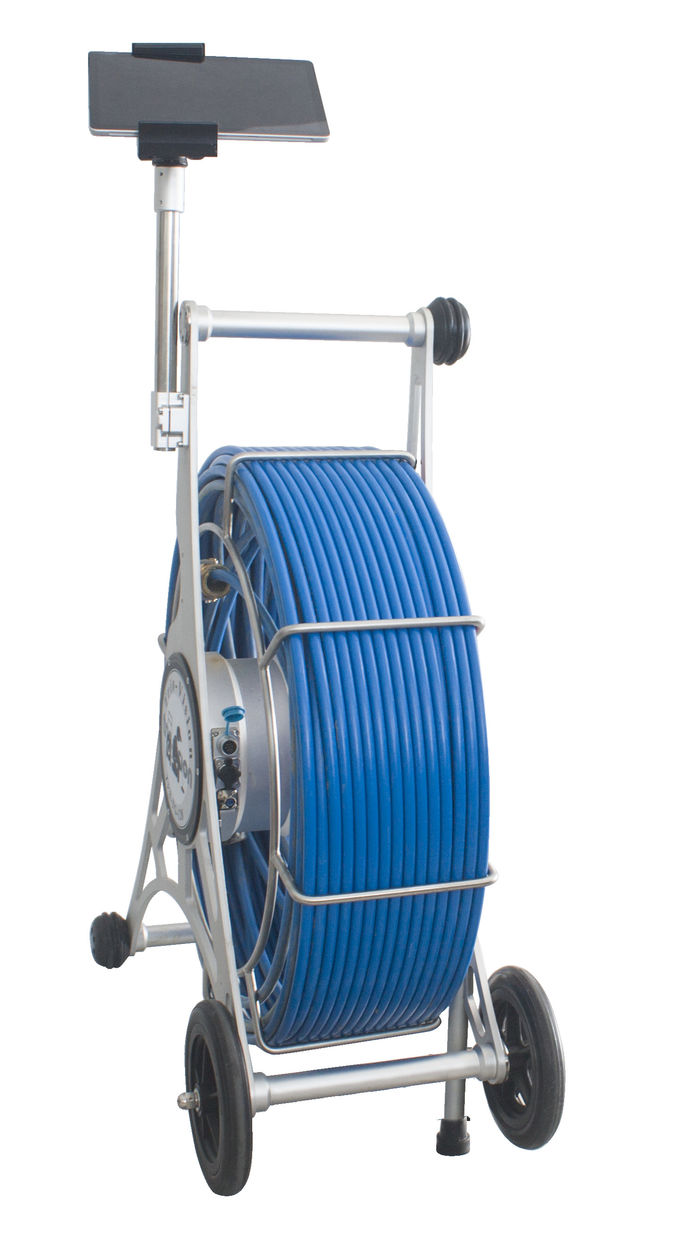

Cable drum |
Aluminum alloy and carbon fiber construction Cable length: 60m Built-in high-capacity rechargeable battery, working more than 8hrs 5.8G Wifi transmission Sonde frequency: 512Hz, 640Hz, 8kHz, 33kHz Size: 605*410*605mm(L*W*H) Weight: approx. 16KG
|
TDP-120 |
