High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz

Place of Origin China
Brand Name Trio-Vision
Model Number TVS-6000
Minimum Order Quantity 1
Packaging Details carton
Delivery Time 4-8 weeks
Supply Ability 10 sets per months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inspection Range 100-6000mm Water Proof IP63
Frequency 512Hz Name Sonar Pipe Inspection
Application Underwater Inspection Feature High Efficiency
High Light

digital inspection camera

,

sewer pipe inspection camera

Leave a Message
Product Description

High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz

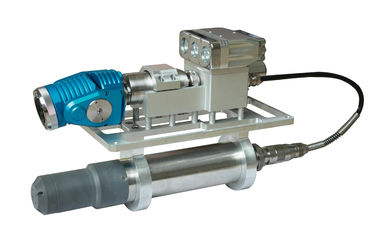

TVS-6000 Sonar Pipeline Inspection System detects and pinpoints targets underwater by means of the principle of wave reflection. It, therefore, can perform pipeline inspection filled with liquid to determine the information of crack and debris in the pipe; and it is the most advanced device for pipeline inspection and assessment.

Sonar Pipe Inspection Features:

  • Complete 360 degree continuous simultaneous scan within 1s
  • Friendly software interface to operate readily
  • Data and images saved in the hard disc
  • Built-in roll and pitch angle sensors
  • Built-in cable counter interface
  • Inspect pipe profile automatically


Sonar Probe Technical Parameter



Acoustic Parameter
Acoustical frequency
2MHz

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width
500KHz



Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz 0

SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)

High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz 1High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz 2High Efficiency Sonar Pipe Inspection For Underwater Inspection 512Hz 3
