|Name:||Drain Pipe Inspection Camera||Display:||8.4 Inch|
|Cable Drum:||Automatic||Pipe Diameter:||250-2000mm|
|Waterproof:||IP68||Other Name:||Plumbing Pipe Camera|
CCTV Drain Pipe Inspection Camera,
IP68 Drain Pipe Inspection Camera,
IP68 Plumbing Pipe Camera
IP68 CCTV Drain Pipe Inspection Camera Plumbing Pipe Camera Robot

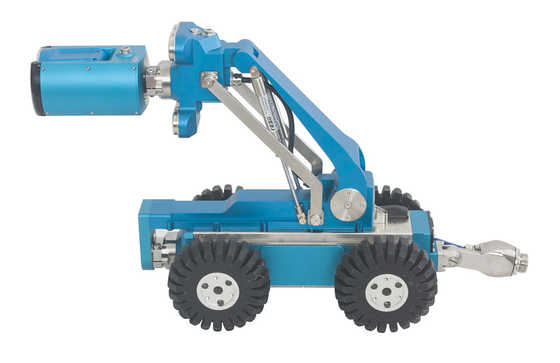

Drain Pipe Inspection Camera is a lightweight steerable pipeline inspection robot,featuringa 360°pan and 180°tilt detachable camera head to acquire video and /or picture images of your inspection,a scalable crawler platform to mount auxiliary components such as sonar,gas detector ect.Integrated with our special anti-overturning wheel design,the crawler can better navigate over obstacles.With an automtic camera-lift and two sizes tires inside the package,this crawler system can traverse and record videos for pipes DN 250-2000.With 20% more illumination from the dimmable high-intensity LED lights,TVS-2000 can deliver unfolded image of the detail pipe conditions and allow you to inspect the entire pipe segment with image display on the 8.4" touch control monitor for quick pipeline fault location.
Drain Pipe Inspection Camera Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.
Drain Pipe Inspection Camera Configuration
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT90 pan & tilt camera||JT360 fish-eye camera|
|Automatic cable drum||Manual cable drum|
|MK3 control unit||PA500 portable movable power|
|Manhole hook, tool bag and other accesories|

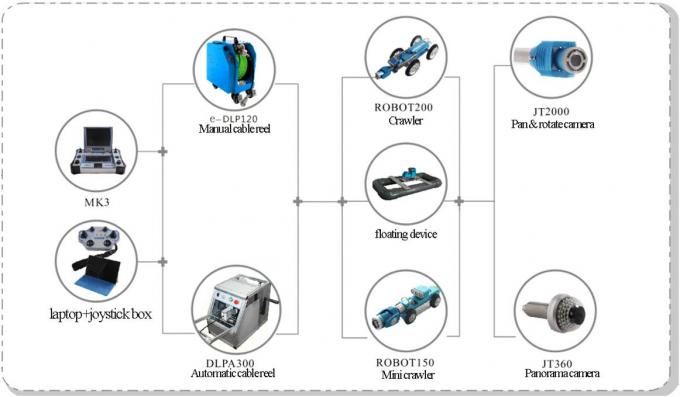

The system is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.
Control Unit MK3
1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Automatic Cable Drum DLPA300
1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum
Fish-eye camera JT360(OPTIONAL)
1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.

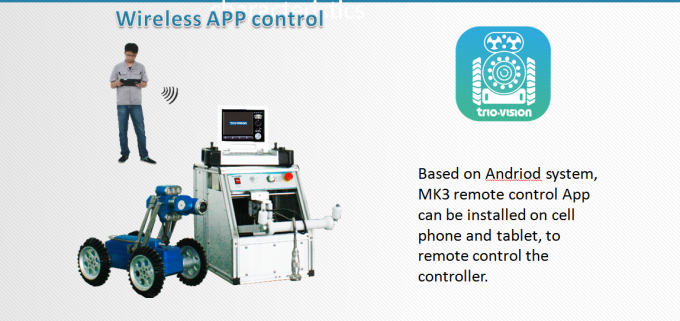

Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
