The Pipe Inspection Camera System camera-tipped probe with 8.4 inch LCD monitor for viewing hard-to-reach inspection area.

During the inspection, defect pictures are acquired;a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the inspection to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).

Features of Pipe Inspection Camera :

1. 360 ° rotate of camera

2. Automatic cable drum

3. Anti-fogged camera lens

4. Windows operation system

5. Brightless adjustable

6. Wincan software inside

Pipe Inspection Camera Configuration

Technical Parameter

Control Unit MK3
1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.

Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

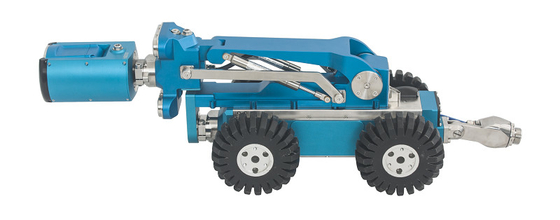

Cralwer TVS-800
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

Automatic Cable Drum DLPA300
1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum

Fish-eye camera JT360
1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.
