Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm

Place of Origin CHINA
Brand Name TRIO-VISION
Model Number TVS-50
Minimum Order Quantity 1
Packaging Details carton
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 40 units per months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pipe Diameter 50-150mm Camera Type Self-balance Camera
Lamp LED Lamp Camera Diameter 46mm
High Light

Pushrod Cable CCTV Inspection Camera

,

Self Balance CCTV Inspection Camera

,

150mm CCTV Inspection Camera

Leave a Message
Product Description



50-150mm Fiberglass Pushrod Cable CCTV Inspection Camera Self-balance





TVS-50 pushrod pipe inspection system is a specia tool for inspecting pipeline located in municipal or commercial or residenial areas, with the diameter ranging from DN50 and typically up to DN150. As a portable tool, the system has high-definition video and is connected by WIFI for long distance inspection.





Features:

1. one touching video/audio recording and image capture

2. zoom function 1x10 levels

3. cable M/FT counter and text

4. 7 hours battery lift

5. 512Hz/640Hz/ 8KHz,/33KHz transmitter

6. self-levelling camera head








Specifications:



Part



Description PN



Control unit and software

Andriod or Windows tablet control, built-in software to control the camera.

Project OSD information input

Self-leveling always

Video storage and project information overlay

Wifi direct connection, pair for special use

Audio input for pipe defects



TVS50-ZKQ-001

Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm 0

Camera



High tensile stainless steel structure with wear-proof

HD camera with clearer images,

self-balance axial camera

Adjustable high light LED lamps

Total pixel: 1080P

Camera size: 46*72mm(D*L)

Camera glass material: sapphire glass

Pipe diameter ranges: 50—150mm(2-6’)



D50-HD



Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm 1Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm 2Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm 3



Centralizer







for 70mm,100mm, 200mm pipe diameter. D50-JZQ

Pushrod Cable CCTV Inspection Camera Self Balance 50-150mm 4

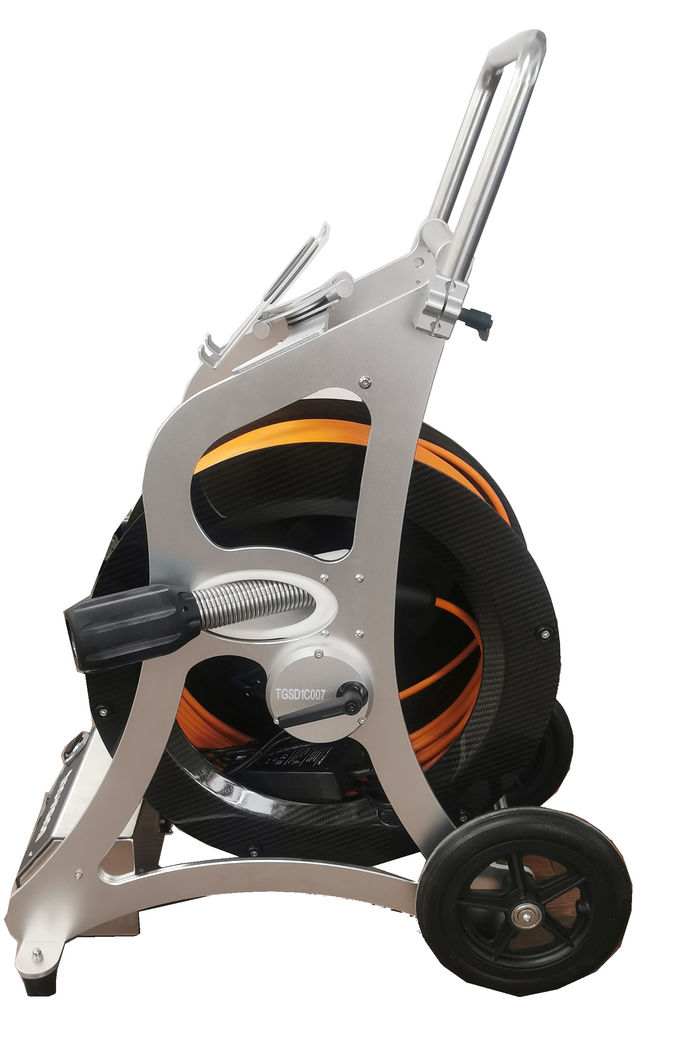

Cable drum



compact, robust and lightweight design

Cable length: 40m

Dimension: 670*565*336mm

Wire material: fiberglass rod

With meter counter

Fiberglass diameter: 9.5mm Weight: 13kg

Material: stainless steel

4 channels for sonde location(512Hz, 640Hz, 8KHz, 33KHz



TDP-50
