Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-5000
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Diameter: Over 150mm Camera: 360° Pan-tilt
Cable Length: 200m/300m Resolution: 2 Megapixel
High Light:

Drain Pipe Inspection Branch Line

,

Pipe Inspection Installed Robotic Crawler

,

Lateral Launch Sewer Inspection Van

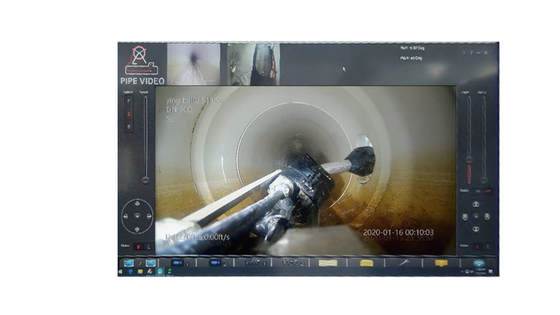

Lateral launch sewer/drain pipe inspection branch line inspection van installed robotic crawler is used for diameter from 150-1000mm in mainlines. It is the first system using 3 HD cameras: main camera, rear camera and lateral camera are all 1080P, the resolution is 2 megapixels.



Features:

1. Used for mainline and lateral inspection

2. 3 HD cameras

3. Remote control

4. Van installed system



System Configuration

Standard Configuration Optional Parts
Lateral crawler Remote controller
Mainline cable reel
Lateral cable reel
Desk controller



Technical Parameter

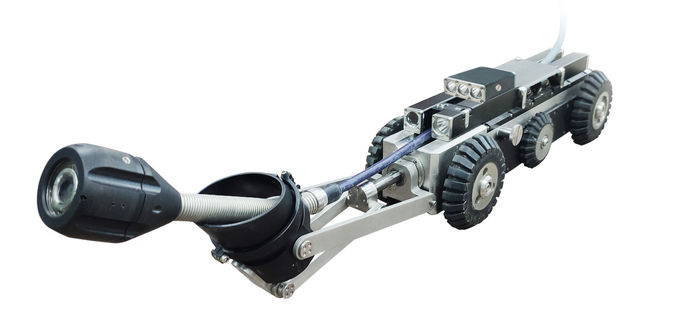

Lateral crawler Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler 0

1. Min inspection diameter: 150mm

2. Six wheel drive

3. Cable feeding speed: 3m/min

4. Camera cup axial rotation: 180°, vertical 90°

5. Main camera: 2 megapixels, fixed focus camera

6. Rear camera resolution: 1980*1080P, diameter 50mm

7. Sonde location: 640Hz, 8kHz, 33kHz

7. Dimension: 900*140*130mm

8. Weight: 16kg

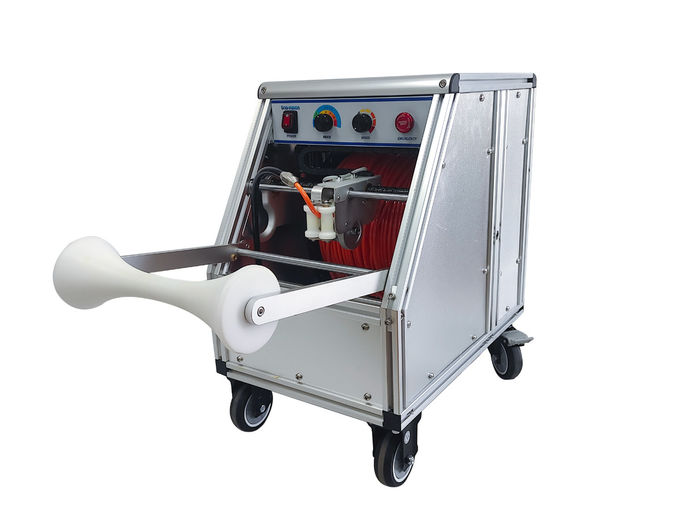

Mainline cable reel Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler 1

1. Cable length: 200m

2. Kevar cable with tensile strength: 300KG

3. Input power: AC100V-240V

4. Dimension: 560*390*570mm

5. Weight: 58kg

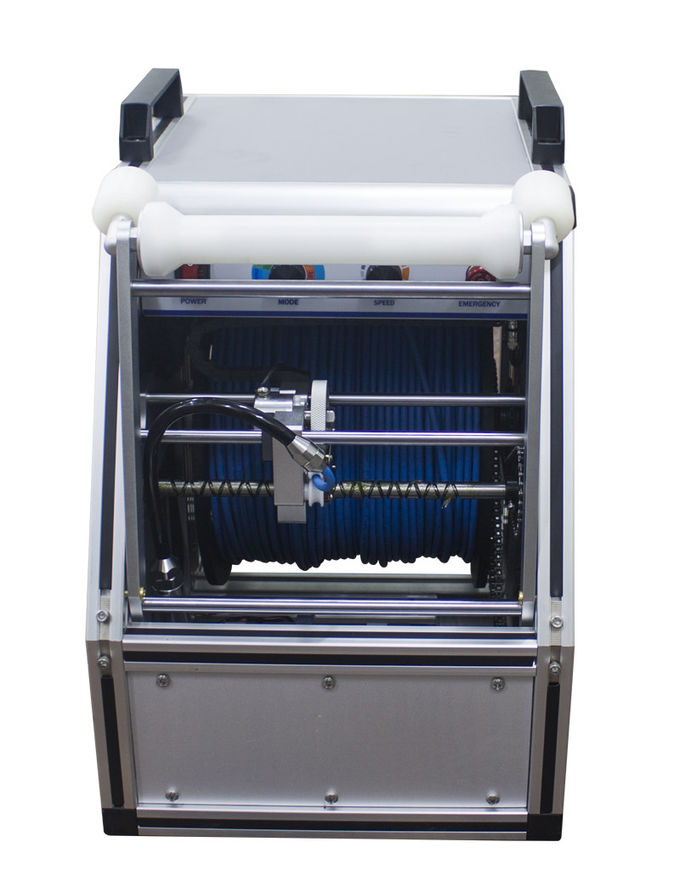

Lateral cable reel



Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler 2

1. Mainline cable length 200m, lateral cable length 45m

2. Meter counter, emergency stop

3. Automatic cable retrieving

4. Kevlar cable with tensile strength 300kg

5. Input power: AC110V-240V

6. Dimension: 820*350*700mm

7. Weight: 58kg

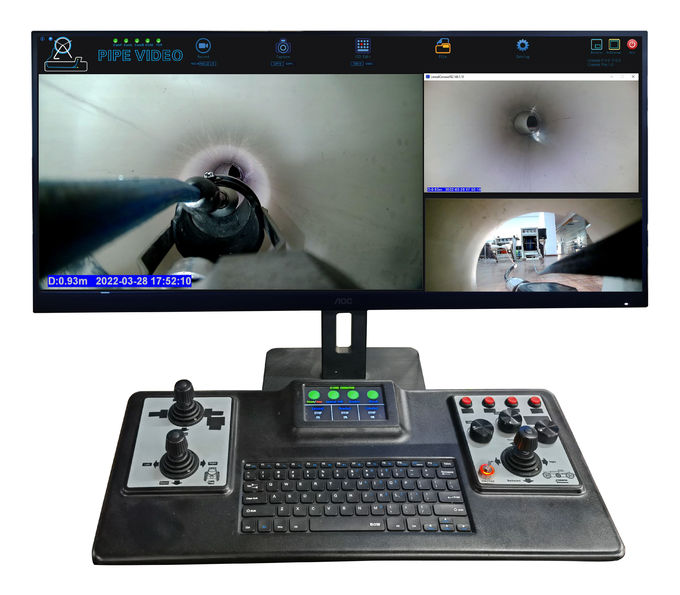

Desk controller Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler 3

1. Control the crawler movement, lateral camera sending and taking back.

2. LCD displays the status of pipe crawler(speed, clutch, forward, backward, left turn, right turn)

3. Keyboard input function

4. Dimension: 620*300*110mm

5. Weight: 3kg





OPTIONAL PARTS

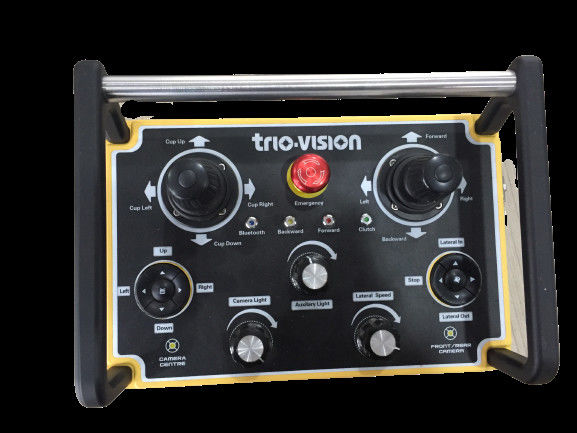

Remote controller

Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler 4

RF data transmission module available for remote control

Dimension: 260*110*200mm

Weight: 1.8kg
