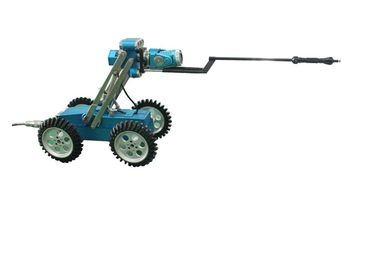

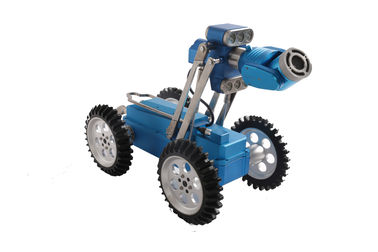

Sewage Drainage Pipe Laser Profiler Inspection Crawler System Long Life

The Profiler has been developed to provide pipeline engineers and contractors very accurate empirical data on the ovality, capacity, and other conditions in new and existing pipelines. The Profiler simply attaches to your existing CCTV Camera and the resulting CCTV images are analysed using innovative 'machine vision' software. For use with Trio-vision camera and pipe diameters from 100 mm up to 2000 mm.

Features & Benefits
Can operate in pipe size ranging from 100mm through 2000mm

High-strength carbon fiber and aluminum construction

Internally battery powered (rechargeable); no electrical connections are required No moving parts

Software can be used on a TV inspection vehicle or on a remote computer

Can capture a single frame of video from videotape, previously stored file, CD, DVD, etc, when utilized on a remote computer


Designed to project a laser light in a radial plane perpendicular to the CCTV camera’s line of sight and create a red line on the inside wall of the pipe; laser is designed to provide sufficient intensity to view the video image with normal CCTV camera lighting


Easily attaches to your existing CCTV Camera or Transporter


Designed to capture and display a single frame on the data monitor for measurement and analysis in Industry Standard Formats to include JPEG, BMP, or TIFF formats


Text can be placed anywhere within the captured video image


A line graph displays the cross-sectional amplitude over the entire length of the pipe run from entry to exit access


Designed to obtain the actual degradation of the pipe by utilizing the laser profiling and measurement tools


Laser head LP-1

1. voltage 3V

2. laser 650nm

3. working temperature -20-60 degree 4. Inspection pipe diameter 100-2000mm
