IP68 Waterproof Pipe Crawler Robot Cable Transmitting Synchronically Inspection System

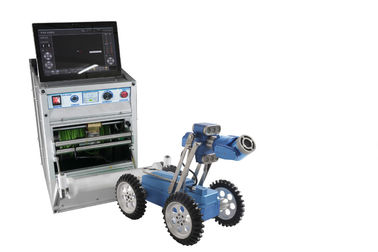

IP68 Waterproof Pipe Crawler Robot Cable Transmitting Synchronically Inspection System controls the crawler moving in the pipe, the high-resolution camera in the front of the crawler can make full inspection and recording for the defects in the pipes, and transmit the images to the control unit via the cable synchronically, to realize remote monitor. The control unit takes Windows operation system, it can process and save the videos in field, and at the same time make judgement and output pipe inspection report, inclination and curve report.

TVS-2000 is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.

Features:

1. High definition CCD camera module

2. Resolution: 1920*1080P

3. Wifi wireless transmission

4. Powerful crawler drive

5. Interchangeable parts

6. Remote control App.

System Configuration

Control Unit MK3
1, Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2, Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3, Camera position, elevator position in Graphs
4, Inclination report in site.
5, System status, work parameter can be query.

Pan&Tilt Camera JT2000
1, 360 degree, no limited rotate
2, The lens heating can prevent fog
3, Camera light can be adjusted
4, Maximum Brightness upgrade 50%, More suitable for small diameter
5, Optional Laser, calibrate defect size

Cralwer TVS-800
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

Cralwer TVS-150
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 100mm~600mm
Drive: two DC motor
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving


Automatic Cable Drum DLPA300
1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum

Fish-eye camera JT360
1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.

Remote Control APP.

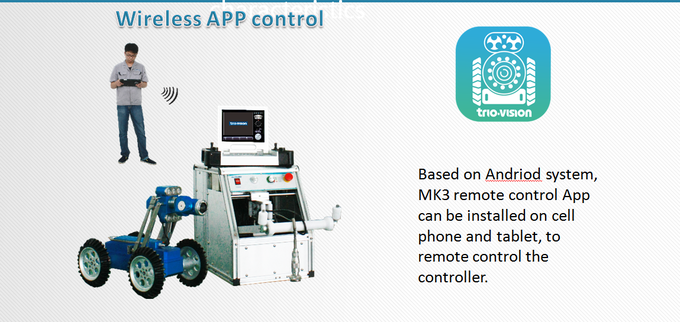

Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
