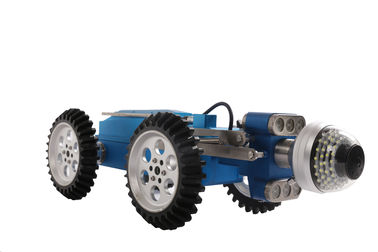

Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe

China Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe supplier

Large Image :  Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe

Product Details:

Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Contact Now
Detailed Product Description
Camera: Fish-eye Camera Rotation: 360 Degree
Image: 3D Image Cable Length: 300m
Technology: CANBUS Remote Control: Available

Fish-eye Camera Sewage Pipe Inspection Crawler Robotic System  contains two crawler system, which makes the inspection range from 150mm to 2000mm pipe diameter, the TVS-150 small crawler is used for 150-600mm dia. pipes, and TVS-800 large crawler is used for 250-2000mm dia. pipe, the camera can work on both crawlers and aumatic cable drum make the work easily.



Features:

1. Fish-eye camera, 360 view of pipe

2. 2D exploded pipe view

3. 3D image and pipe module

4. 92pcs LED lamps

5. Anti-fogged camera lens

6. Brightless adjustable



Technical Parameter

Control Unit MK3 Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe
  1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
  2. Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
  3. Camera position, elevator position in Graphs
  4. Inclination report in site.
  5. System status, work parameter can be query.
Fish-eye Camera JT-360 Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe
  1. view angle: 0-360 angle
  2. resolution: 3 megapixel
  3. 92pcs lamps, 200lm
  4. sensitivity: 0.3Lux
  5. interface: connect with crawler directly
  6. 2D pipe explored analysis
  7. working temperature: -20ºC~65ºC
  8. waterproof: IP68




Automatic Cable Drum DLPA300 Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe
  1. 6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
  2. Standard length: 200m,max. 300m
  3. Automatic cable drum

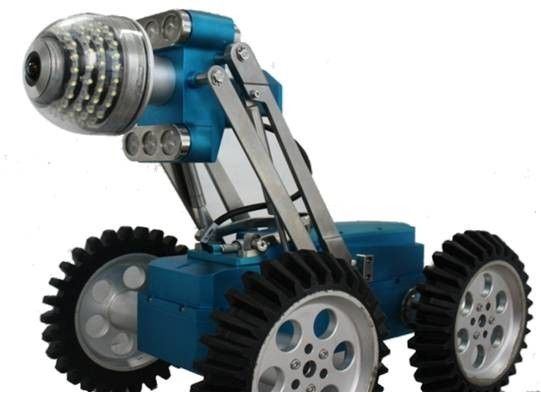

Cralwer TVS-800 Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe
  1. Working temperature: -10ºC~50ºC
  2. Suitable pipe diameter: 250mm~2000mm
  3. Drive: two DC motor
  4. Elevator: electric elevator
  5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
  6. Speed: adjustable speed, max. 32m/min
  7. Direction: forward, backward, left, right
  8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
  9. Climbing: max. climb degree about 50° according to diffrerent pipe status
  10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-360 fish-eye camera JT-2000 pan and rotate camera
Automatic cable drum Manual cable drum
MK3 control unit PA500 portable movable power
  TVS150 mini crawler





Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe





Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
Fish Eye Camera Robotic Crawler Pipe Inspection System 360 Degree View For Pipe
