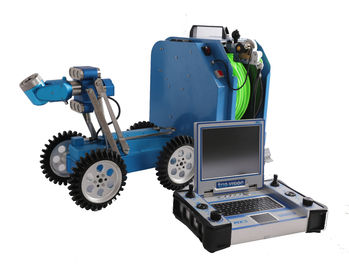

Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control

China Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control supplier

Large Image :  Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control

Product Details:

Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Contact Now
Detailed Product Description
Cable Length: 120m Inspection Range: 300-2000mm
Monitor: Laptop Or Controller System: Windows
Control: Joystick Or Controller Cable Drum: Manual

Selectable Controller Mainline Pipeline Inspection Robot Inspection Crawler system, the customer can choose either laptop or controller to control the crawler, they can work together also.It makes a great advantage for inpsection on-site customers. The ightweight manual cable drum is easy for transportation and operation.



Features:

1. Laptop or controller control

2. Multiple choices

3. Anti-fogged camera lens

4. 360 ° rotate of camera

5. Windows laptop/controller

6. Brightless adjustable



Technical Parameter

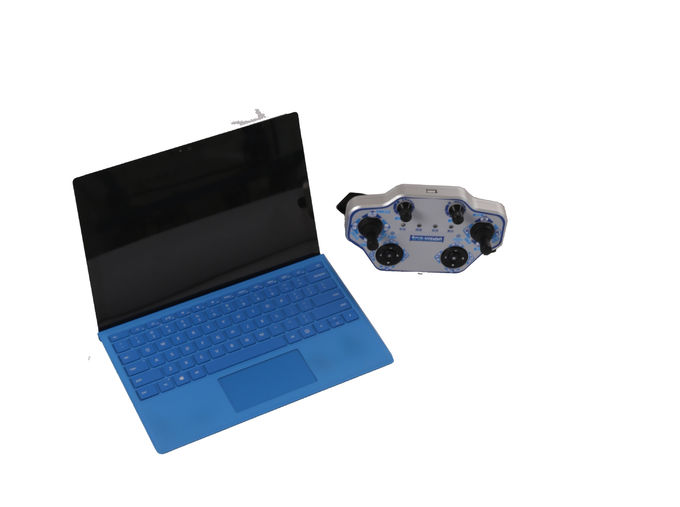

Controller Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Cralwer TVS-800 Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control 1,Manual cable drum
2,standard length: 120m

Controller MK3 Mainline Pipeline Inspection Robot , Pipe Crawler Robot Wireless Control 1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop+JoyStick PA500 portable movable power
Controller MK3
