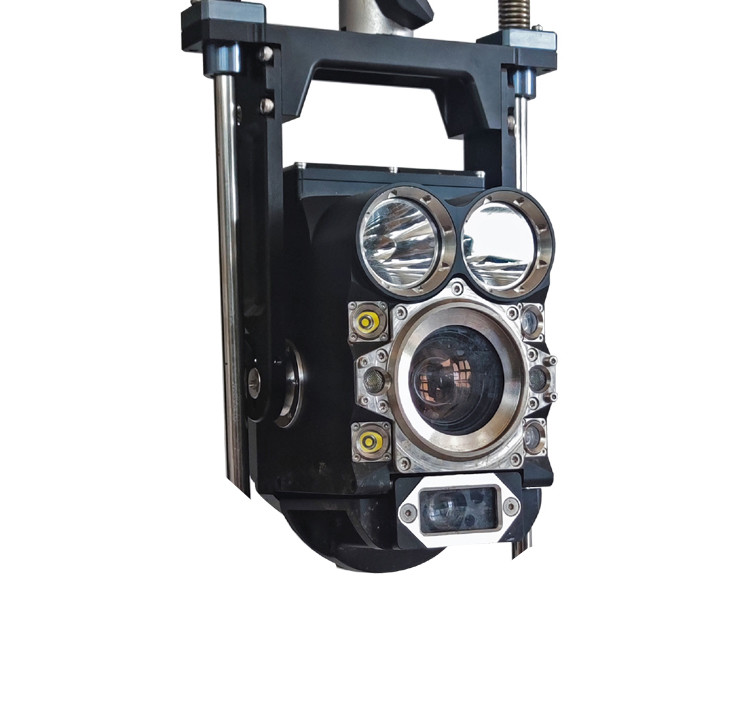

Video Telescopic Inspection Camera / Auto Tilt Zoom Underwater Pole Camera

Video Telescopic Inspection Camera / Auto Tilt Zoom Underwater Pole Camera

Telescopic Inspection Camera introduction & Specification list:

• The Telescopic Inspection Camera series is an extremely reliable and affordable inspection device used to inspect tanks, manholes, pipelines, etc. from street level.
• It uses a new generation of LED lights (which are dimmer controlled) to illuminate the inspection area, producing great light intense while extending the life time of the LED elements. These last much longer than standard halogen and HID bulbs.
• Thanks to a built in  CCD camera chip every important detail will be displayed during inspections.This camera features powerful automatic zoom (36X optical / 12X digital) with a detection distance up to 60 meters. The camera body tilts automatically up 45° and down 45°.
• Inspections can be documented by either image (MPEG) or video (MPEG4/AVI) capture and saved onto a 8G SD memory card ( Max 32G optional). The imaging hub is equipped with a 5.7'' TFT color monitor with characters input and 640x480 pixel resolution.

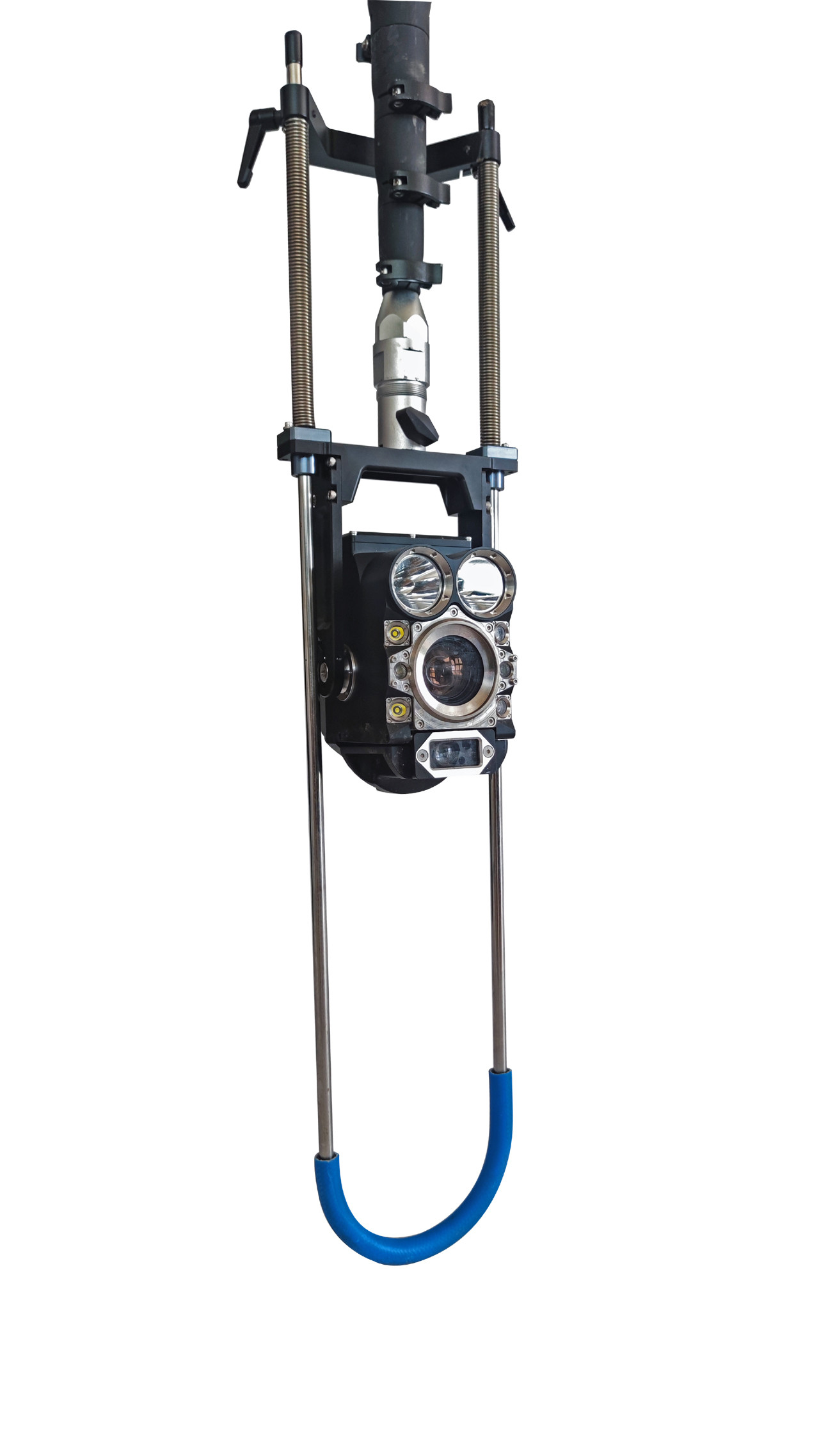

• The lightweight telescoping pole is normally 6.7 meters long (optional 10 meters) and fixes securely on the heavy duty industrial tripod. It has spring suspension for stability and fine height adjustment.
• The periscope camera is waterproof (IP 68) allowing it to be used widely for inspection in sewer, water, and waste mainlines, ducts and pipes. And power is provided by a portable built in rechargeable lithium battery, providing a charge for up to 4-5 hours of use.

Telescopic Inspection Camera Features:

• High definition camera
• 1920*1080P videos and photos
• Swift, accurate inspection
• Lightweight pole
• Zooming: 432:1
• Waterproof: IP68

Standard Configuration:
1. camera head
2. lithium battery
3. standard poles: 6m

4. Windows tablet

Optional: Laser Distance Measuring Module

Precisely measure the object distance, with a precision of millimeter, which can help you position the pipe defects and provide exact distance for later engineering.
Measuring distance 0.1-100m, typical precision ±1mm.
Measuring frequency 20Hz, video overlay the measuring results.
