Wireless Transmission Drain Cleaning Camera With Long Time Battery
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Length | 200m | Light | LED Lights |
|---|---|---|---|
| Display | 5.6" LCD Screen | Pipe Diameter | 150-600mm |
| Water Pressure | 20Mpa | Waterproof | IP68 |
| High Light | water jet drain cleaner,high pressure drain cleaner |
||
Product Description

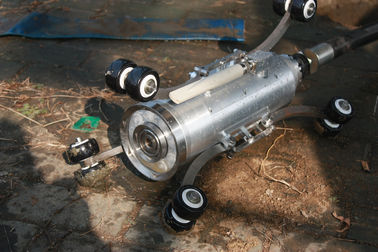

Wireless Video Inspection Jetting Camera - Sewer Pipe Inspection / Cleaning

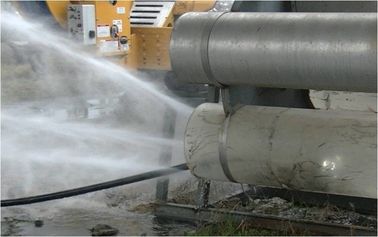

Wireless Video Inspection Jetting Camera is for both cleaning and inspection of sewer/drainage pipes, it works with high pressure jetting truck, using the high pressure water to drive the nozzle move in the pipe.
Features:
1. wireless tranmission from pipe to ground
2. SD card storage
3. LED lights
4. high pressure
5. waterproof: IP68

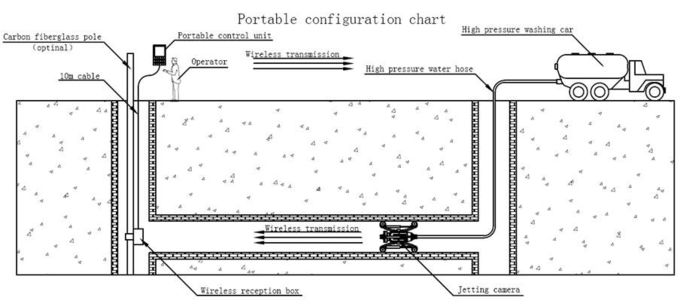

System working diagram:

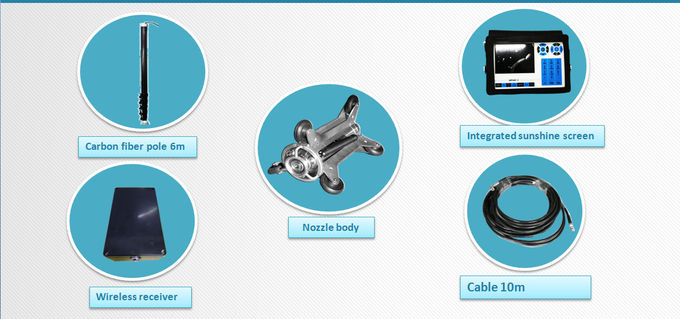

| Standard Configuration: | Optional parts: |
| 1,spray nozzle | 1,long time battery |
| 2,NC-Z receiver | 2,un-adjustable but removable support for 300mm pipe diameter |
| 3,10m cable | 3, un-adjustable but removable support for 600mm pipe diameter |
| 4,hand-held control unit |

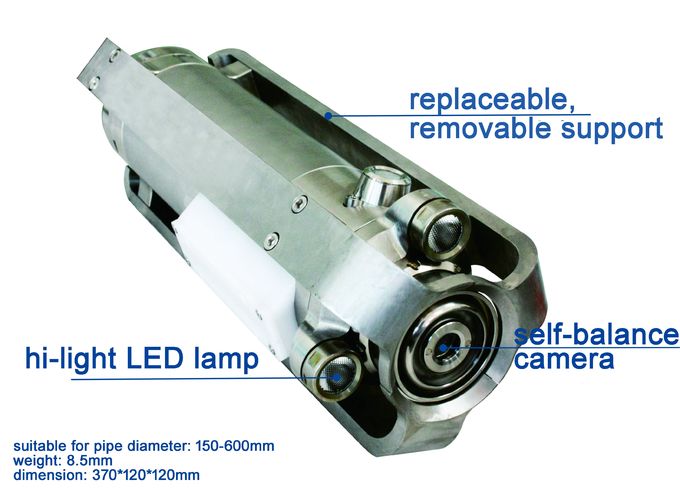

Main components:

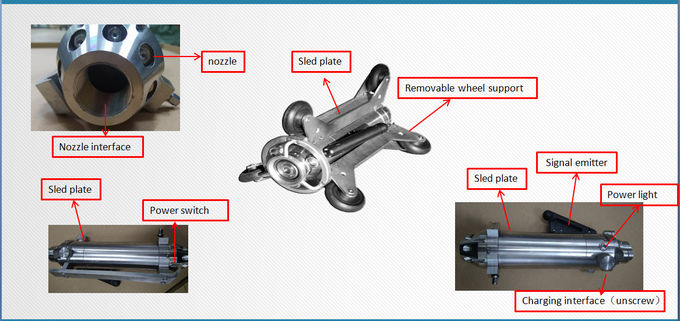

Parts and Components:
Technical Parameter:
| Nozzle Unit | Control Unit |
| Image sensor: white balance Resolution:480k pixel Light : 2500Lm Battery: 3hrs working time Inspection length: 200m Pipe diameter: 150-600mm Water pressure: 20mpa Flow: 210L/min Waterproof: IP68 Weight: 10KG |

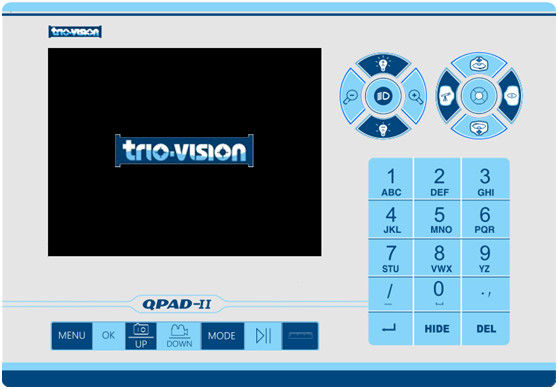

Screen: 5.6"LCD, visible under strong light Video storage, review and image capture functions available On site audio input, audio storage and review functions Power Supply: embedded battery Storage Method: SD card or USB disc or portable hard disc Weight:2Kg Water and Dust Proof:IP63 Dimensions:220*140*45mm |
|
|
