Urban Drainage Network Drain Cleaning Camera 600mm Dia 10m Cable

Urban Drainage Network Drain Cleaning Camera 600mm Dia 10m Cable
Urban Drainage Network Drain Cleaning Camera 600mm Dia 10m Cable

Large Image :  Urban Drainage Network Drain Cleaning Camera 600mm Dia 10m Cable

Product Details:
Place of Origin: CHINA
Brand Name: TRIO-VISION
Model Number: NC-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 4-8 weeks
Supply Ability: 100 units per year
Detailed Product Description
Product Name: Drain Cleaning Camera Pipe Diameter: 150-600mm
Image Sensor: White Balance, Self-balance Inspection Length: 200m
Cable: 10m Application: Urban Drainage Network
High Light:

Urban Drainage Drain Cleaning Camera

,

600mm Drain Cleaning Camera

,

600mm drainage inspection camera

Urban Drainage Network Drain Cleaning Camera 600mm Dia 10m Cable


TVS-NC150 Drain Cleaning Camera can be used for inspecting pipe lines, drains, wells, HVAC ductwork, general building inspection, and more.

This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment,


Drain Cleaning Camera Standard Configuration:


1, spray nozzle(LED light, self-balance camera, adjustable and removable support for 150-300mm pipe diameter)
2, NC-Z receiver
3, 10m cable
4, hand-held control unit
Optional parts:
1, carbon fiber pole
2, un-adjustable but removable support for 300mm pipe diameter
3, un-adjustable but removable support for 600mm pipe diameter

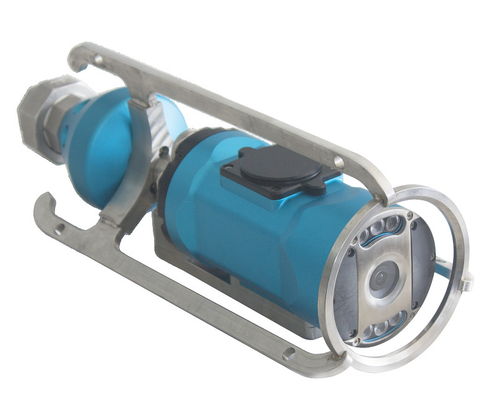

Nozzle Unit of Drain Cleaning Camera


Image sensor: white balance
Resolution:480k pixel
Light : 2500Lm
Battery: 3hrs working time
Inspection length: 200m
Pipe diameter: 150-600mm
Water pressure: 20mpa
Flow: 210L/min
Waterproof: IP68
Weight: 10KG

Control Unit of Drain Cleaning Camera


Screen: 5.6"LCD, visible under strong light
Video storage, review and image capture functions available
On site audio input, audio storage and review functions
Power Supply: embedded battery
Storage Method: SD card or USB disc or portable hard disc
Weight:2Kg
Water and Dust Proof:IP63
Dimensions:220*140*45mm
