Computer Controlled CCTV Inspection Camera , Lightweight Sewer Robot Camera
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Length | 120m | Inspection Range | 300-2000mm |
|---|---|---|---|
| Monitor | Laptop | Camera Rotate | 360° |
| Control | Joystick | Cable Drum | Manual |
| Highlight | drain cctv equipment,pipeline inspection robot |
||
Product Description
Lightweight Computer Controlled Sewer Drain Pipeline Inspection Robot contains a lightweight manual cable drum, it is easy for transportation and operation. The most important improvement is we use a Windows laptop not a traditional controller to control. It is equipped with a joystick, you can control both on laptop and joystick. The customer can use any type of Windows laptop as a controller
Features:
1. Laptop and joystick control
2. Light and easy transportation
3. Anti-fogged camera lens
4. 360 ° rotate of camera

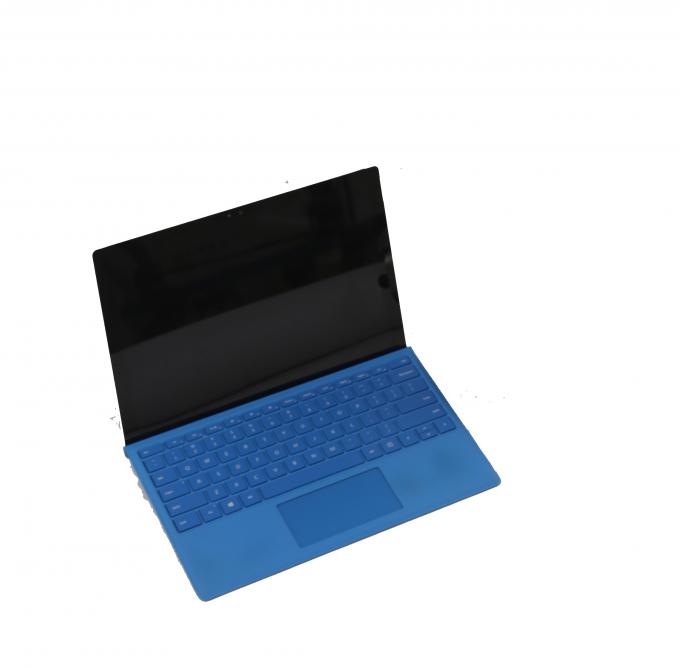

5. Windows laptop
6. Brightless adjustable
Technical Parameter
| Controller |  |
1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time. |
| Pan&Tilt Camera JT2000 | |
1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size |

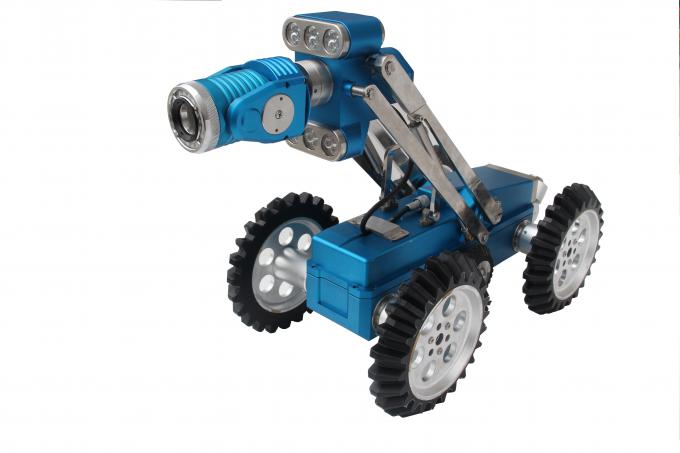

| Cralwer TVS-800 | |
1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving |
| Manual Cable Drum DLPM120 | |
1,Manual cable drum 2,standard length: 120m |

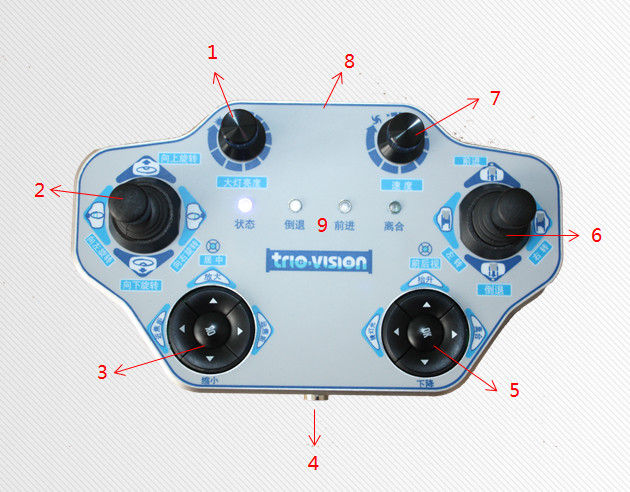

| Joystick | |
(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected |
System Configuration
| Standard Configuration | Optional Parts |
| TVS800 crawler | JT60 axial camera |
| JT-2000 pan & tilt camera | JT360 fish-eye camera |
| Manual cable drum | Automatic cable drum |
| Windows Laptop | PA500 portable movable power |
| Joysitck |
