|Cable Drum:||Automatic||Cable Length:||300m|
|Inspection Range:||150-2000mm||Camera Rotate:||360°|
drain cctv equipment,
pipeline inspection robot
Robotic CCTV Pipe Inspection Equipment Sewer Pipe Inspection Camera System is a product designed on the basis of industrial Windows system. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).
The TVS-2000 system can offer a never-seen-before detail images by steering crawler traverse pipes to proceed video recording,data transmission via cable,display images on 8.4”touch LCD screen,and generating reports.
The system contains two crawler system, which makes the inspection range from 150mm to 2000mm pipe diameter, the TVS-150 small crawler is used for 150-600mm dia. pipes, and TVS-800 large crawler is used for 250-2000mm dia. pipe, the camera can work on both crawlers and aumatic cable drum make the work easily.
1. Interchangeable parts
2. CANBUS system
3. One-key center camera
4. 360 ° rotate of camera
5. Anti-fogged camera lens
6. Brightless adjustable

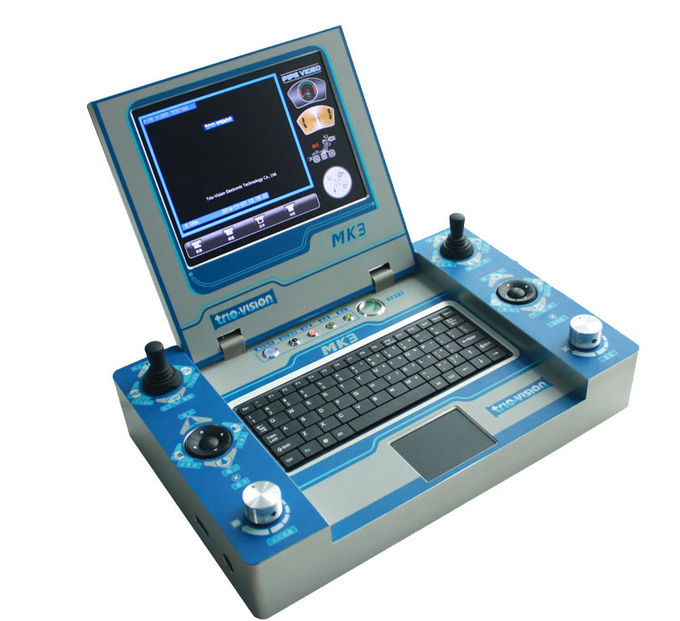

|Control Unit MK3||1, Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2, Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3, Camera position, elevator position in Graphs
4, Inclination report in site.
5, System status, work parameter can be query.

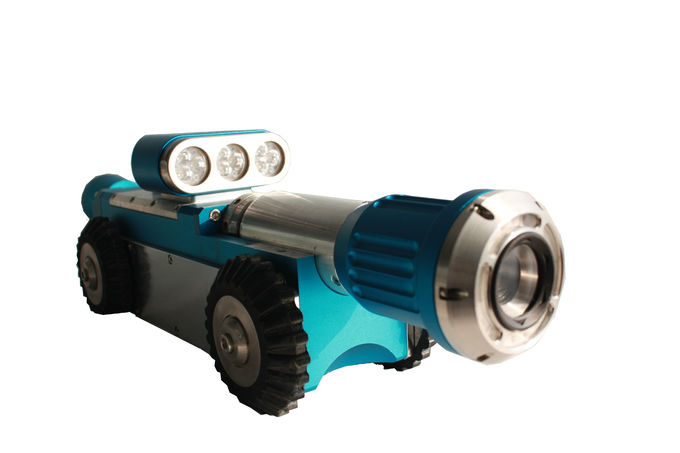

|Pan&Tilt Camera JT2000||1, 360 degree, no limited rotate
2, The lens heating can prevent fog
3, Camera light can be adjusted
4, Maximum Brightness upgrade 50%, More suitable for small diameter
5, Optional Laser, calibrate defect size
|Cralwer TVS-150||1. Waterproof to IP68
2. Working temperature: -10ºC~50ºC
3. Suitable pipe diameter: 250mm~2000mm
4. Drive: two DC motor
5. Elevator: electric elevator
6. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
7. Speed: adjustable speed, max. 32m/min
8. Direction: forward, backward, left, right
9. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
10. Climbing: max. climb degree about 50° according to diffrerent pipe status
11. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

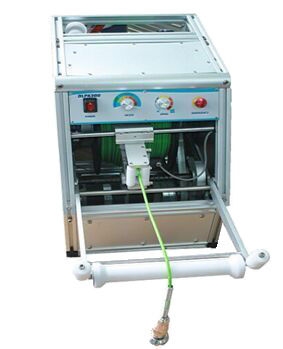

|Automatic Cable Drum DLPA300||1, 6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2, standard length: 200m,max. 300m
3, Automatic cable drum

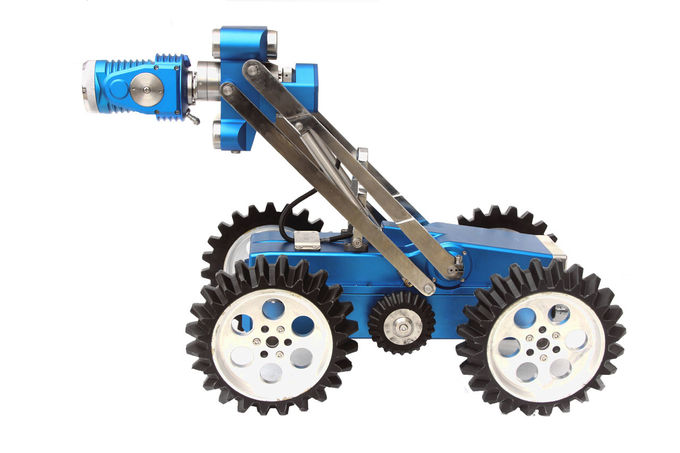

|Cralwer TVS-800||Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

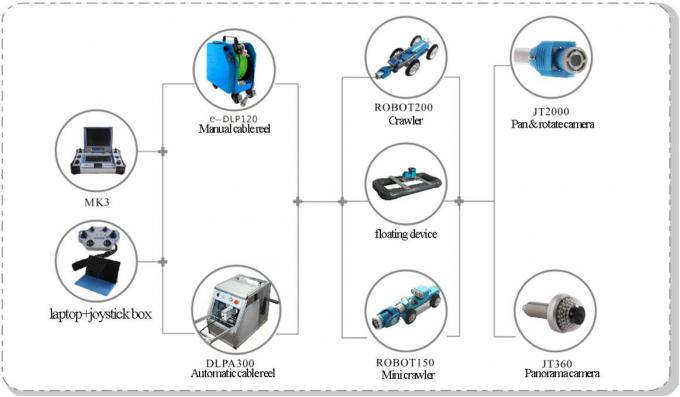

|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Automatic cable drum||Manual cable drum|
|MK3 control unit||PA500 portable movable power|
|TVS150 small crawler|

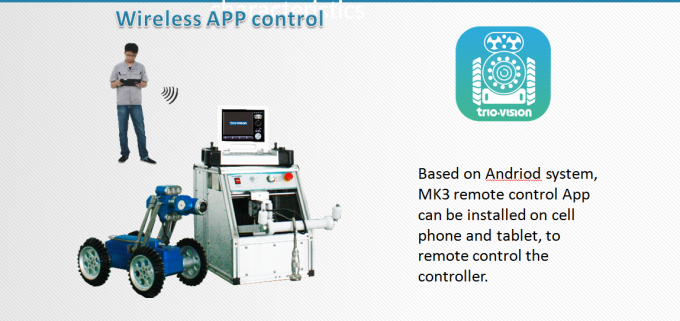

Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
