IP63 Waterproof Sonar Sewer Pipe Inspection High Efficiency For Underwater Inspection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inspection Range | 100-6000mm | Water Proof | IP63 |
|---|---|---|---|
| Frequency | 512Hz | ||
| High Light | digital inspection camera,sewer pipe inspection camera |
||
Product Description

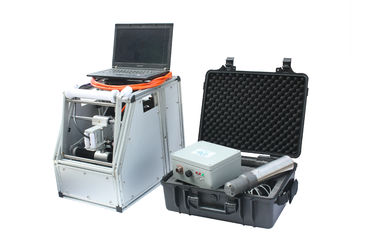

Sewer Pipe Inspection Sonar System Underwater Inspection Tvs-6000
TVS-6000 Sonar Pipeline Inspection System detects and pinpoints targets underwater by means of the principle of wave reflection. It, therefore, can perform pipeline inspection filled with liquid to determine the information of crack and debris in the pipe; and it is the most advanced device for pipeline inspection and assessment.
Features:
- Complete 360 degree continuous simultaneous scan within 1s
- Friendly software interface to operate readily
- Data and images saved in the hard disc
- Built-in roll and pitch angle sensors
- Built-in cable counter interface
- Inspect pipe profile automatically
Sonar Probe Technical Parameter
| Acoustic Parameter | Acoustical frequency |
2MHz |
Wave width |
1.1°(cone wave beam) | |
Lateral resolution |
0.5mm (Pipe radius 125mm) |
|
| Max. inspection radius | 12m | |
| Transmit pulse width | 4~20us | |
Receiving wave width |
500KHz |
Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
