Sonar Pipe Sewer Inspection Equipment / Pipeline Cctv Inspection Camera

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-6000
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 4-8 weeks
Supply Ability: 10 sets per months
Name: Pipe Sewer Inspection Equipment Inspection Range: 100-6000mm
Water Proof: IP63 Frequency: 512Hz
Condition: New Color: Multi Color
High Light:

sonar pipe inspection

,

sewer inspection equipment

Sonar Pipe Sewer Inspection Equipment / Pipeline Cctv Inspection Camera



Pipe Sewer Inspection Equipment Introduction



Generally CCTV combined with sonar is used for internal condition inspection or assessment where depth of flow of sewage varies from 25% to 75% of overall sewer diameter for sewers greater than500mm in diameter. The sewer under water can be scanned by the sonar while above water can be inspected by the camera system to generate the video inspection report. The device, utilized two inspection systems, makes a new era on the way of pipeline inspection.


Pipe Sewer Inspection Equipment Features:


CCTV & Sonar Inspection together

CCTV and sonar image display on the same screen

Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically

Sonar Probe Technical Parameter




Acoustic Parameter
Acoustical frequency
2MHz

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width
500KHz

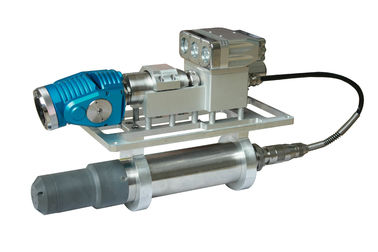

Pan&Tilt Camera JT2000
1, 360 degree, no limited rotate
2, The lens heating can prevent fog
3, Camera light can be adjusted
4, Maximum Brightness upgrade 50%, More suitable for small diameter
5, Optional Laser, calibrate defect size

Sonar Pipe Sewer Inspection Equipment / Pipeline Cctv Inspection Camera 0

ZK200 Control |Unit

Control pane: control of crawler speed, direction, camera focusing, rotation, light intensity, camera up and down, clutch, the control box can be took out separately and do operation by a DB9 wire.

Power: AC 220V

Output: PAL mode

Waterproof: IP63

Camera control: a key center control

Data output: distance, time live display, pressure, inclination, elevator height animation display.

Resolution: 800*640

Resolution: 1024*768

Weight: 20kg

Sonar Pipe Sewer Inspection Equipment / Pipeline Cctv Inspection Camera 1

Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
Sonar Pipe Sewer Inspection Equipment / Pipeline Cctv Inspection Camera 2
The company has set up Marketing, R&D, Machining, Administration, Finance, Purchasing, QC, After-Sales Departments, owns employees over 50, and all kinds of equipments over 20 sets, among it, the machining department owns a serial of machining equipments: Three-headed CNC (VMC serial), digital control lathe (CK serial), digital control miller, common lathe, common miller etc. The company also introduced and applied sophisticated instruments like 3D printer to prove design. The abundant manufacturing and machining equipments provides the source power to our product design, quantity production and fast OEM/ODM customer made solutions.
