Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud

Place of Origin China
Brand Name Trio-Vision
Model Number TVS-8000
Minimum Order Quantity 1
Packaging Details carton
Delivery Time 30 days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Over 300mm Tranmission Wireless WIFI For Wire
Camera 360° Pan-tilt Cable Length 200m/300m
High Light

Spiral Robotic Sewer Inspection Camera

,

Remote Control Sewer Inspection Camera

,

Spiral Robotic Pipe Inspection Camera

Leave a Message
Product Description

Remote Computer Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud

Lizard small size amphibious CCTV and sonar sewer/water pipe inspection camera system adopts spiral propulsion structure, which is suitable for working in various complex environments such as water surface, mud, swamp and so on. Equipped with 360° pan-tilt-zoom camera, it can inspect with high-definition images. The high brightness LED array is suitable for large pipes, canals and box culverts. It can be equipped with sonar probe to display images underwater surface, thus detecting the cross-section and silt depth under water pipes and canals over-water at the same time.



Features:

1. Used for both water and non-water pipes

2. 360 degree pan-tilt-camera

3. Sonar inspection available

4. Good for long distance

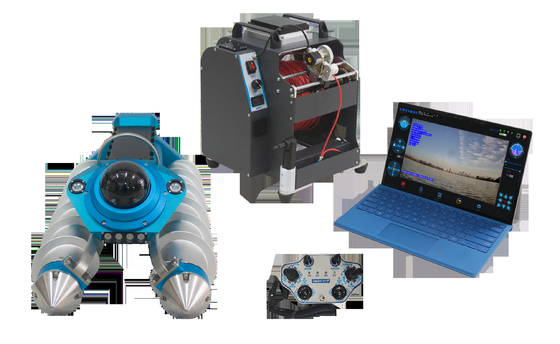

System Configuration

Standard Configuration Optional Parts
Lizard for small size Amphibious robot
Maual cable reel Main controller
Remote controller Portable cart
Software Removable lithium battery



Technical Parameter

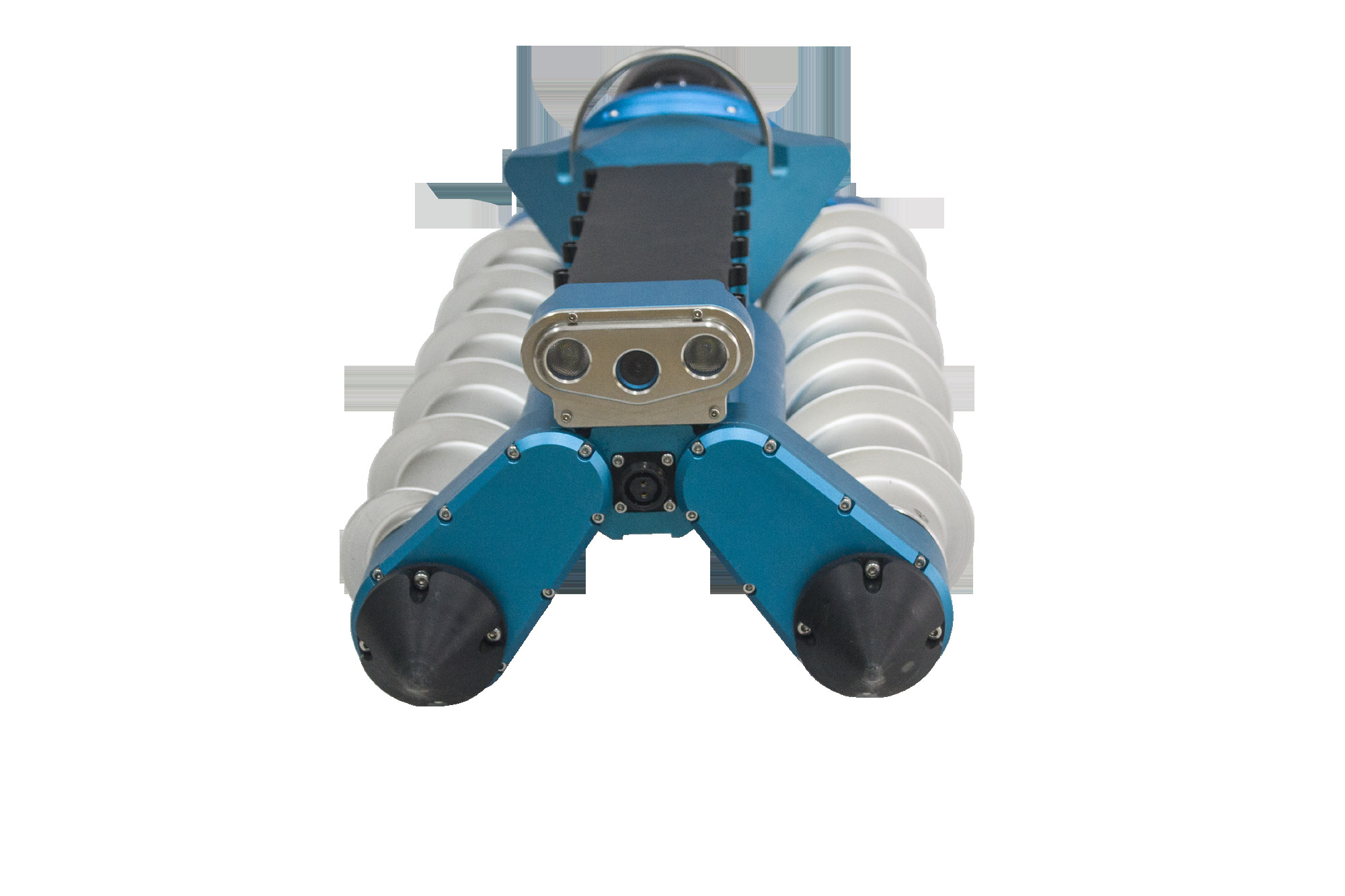

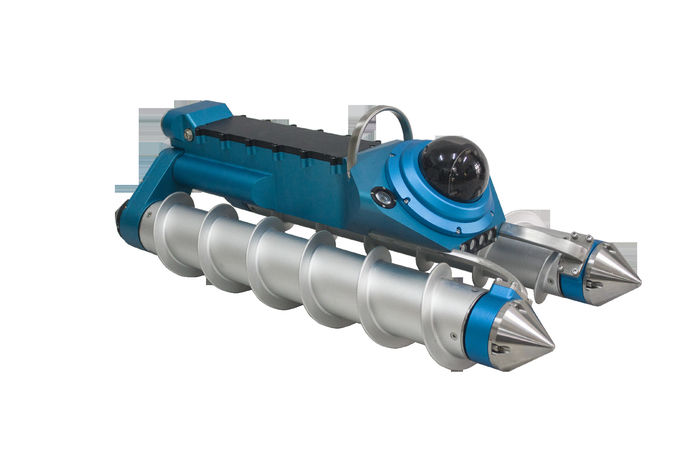

Lizard robot Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud 0

1. suitable for pipe DN300 and above

2. HD front and rear camera

3. Spiral propulsion, overwater, mud, silt, swamp and other complex fields

4. 6 sets high-intensity LED, inspection especially for large culvert

Manual cable reel Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud 1

1. Base station architecture, network cable, WIFI, special line and other signal transmission modes

2. Video signal and control command, lossless and delay free transmission

3. Tensile floating cable, auto winding and traversing

4. Built-in battery, and removable

5. Dimension: 510*400*450mm

6. Weight: 26.5kg

7. Cable stanard length: 200m, 300m optional

Remote controller



Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud 2

1. Simple, convenient and flexible operation

2. Self diagonosis function, status visible

3. Robot walking posture display

4. Wireless/wired dual working mode

5. Compass indicates the direction

6. Weight 0.5kg

Software Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud 3 Operation software to control the robot and camera movements.





OPTIONAL PARTS

Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud 4
