|Inspection Range:||100-6000mm||Water Proof:||IP63|
|Frequency:||512Hz||Name:||Cctv Pipeline Inspection|
|OEM:||Yes||Other Name:||Cctv Inspection Camera|
cctv pipeline inspection,
sewer inspection equipment
OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera
Cctv Pipeline Inspection Introduction
Generally CCTV combined with sonar is used for internal condition inspection or assessment where depth of flow of sewage varies from 25% to 75% of overall sewer diameter for sewers greater than500mm in diameter. The sewer under water can be scanned by the sonar while above water can be inspected by the camera system to generate the video inspection report. The device, utilized two inspection systems, makes a new era on the way of pipeline inspection.
Cctv Pipeline Inspection Features:
CCTV inspection above water, soanr inspection under water
CCTV and sonar image display on the same screen
Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically

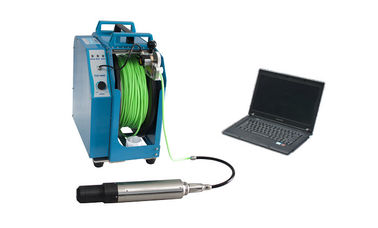

Sonar Probe Technical Parameter
|1.1°(cone wave beam)|
0.5mm (Pipe radius 125mm)
|Max. inspection radius||12m|
|Transmit pulse width||4~20us|
Receiving wave width
Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

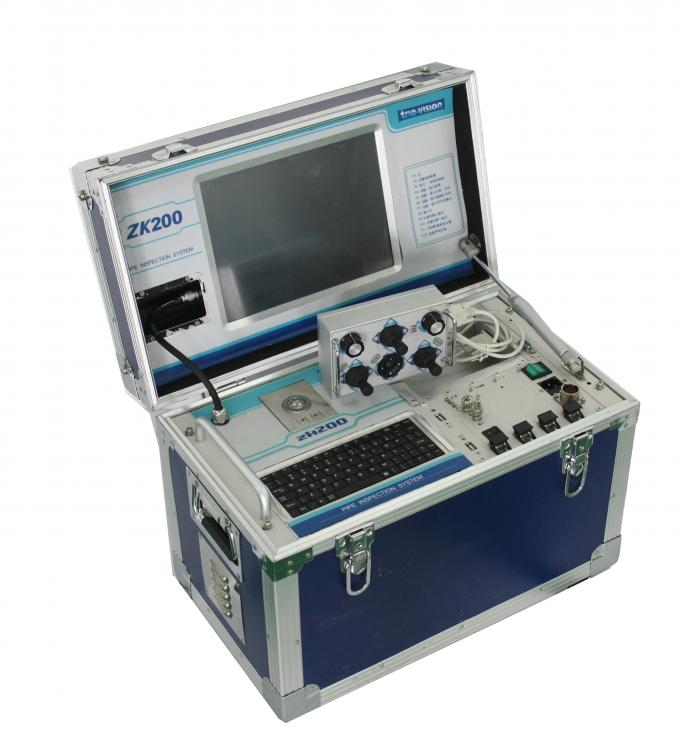

ZK200 Control |Unit
Control pane: control of crawler speed, direction, camera focusing, rotation, light intensity, camera up and down, clutch, the control box can be took out separately and do operation by a DB9 wire.
Power: AC 220V
Output: PAL mode
Camera control: a key center control
Data output: distance, time live display, pressure, inclination, elevator height animation display.
Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
