OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-6000
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 4-8 weeks
Supply Ability: 10 sets per months
Inspection Range: 100-6000mm Water Proof: IP63
Frequency: 512Hz Name: Cctv Pipeline Inspection
OEM: Yes Other Name: Cctv Inspection Camera
High Light:

cctv pipeline inspection


sewer inspection equipment

OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera


Cctv Pipeline Inspection Introduction


Generally CCTV combined with sonar is used for internal condition inspection or assessment where depth of flow of sewage varies from 25% to 75% of overall sewer diameter for sewers greater than500mm in diameter. The sewer under water can be scanned by the sonar while above water can be inspected by the camera system to generate the video inspection report. The device, utilized two inspection systems, makes a new era on the way of pipeline inspection.

Cctv Pipeline Inspection Features:


CCTV inspection above water, soanr inspection under water

CCTV and sonar image display on the same screen

Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically

Sonar Probe Technical Parameter


Acoustic Parameter
Acoustical frequency

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width


Pan&Tilt Camera JT2000
1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera 0

ZK200 Control |Unit

Control pane: control of crawler speed, direction, camera focusing, rotation, light intensity, camera up and down, clutch, the control box can be took out separately and do operation by a DB9 wire.

Power: AC 220V

Output: PAL mode

Waterproof: IP63

Camera control: a key center control

Data output: distance, time live display, pressure, inclination, elevator height animation display.

Resolution: 800*640

Resolution: 1024*768

Weight: 20kg

OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera 1

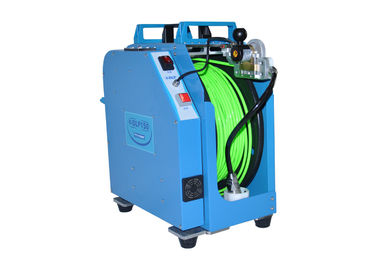

Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
OEM Drain Cctv Pipeline Inspection / Digital Cctv Inspection Camera 2


TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 250 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
