Inspection Range: | 100-6000mm | Water Proof: | IP63 |
---|---|---|---|
Frequency: | 512Hz | Name: | CCTV & Sonar Inspection System |
Sensor: | Pitch Angle Sensors | Oem: | Available |
High Light: | sonar pipe inspection,cctv pipeline inspection |
Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz
CCTV & Sonar Inspection System Features:
Sonar Probe Technical Parameter
Acoustic Parameter | Acoustical frequency |
2MHz |
Wave width |
1.1°(cone wave beam) | |
Lateral resolution |
0.5mm (Pipe radius 125mm) |
|
Max. inspection radius | 12m | |
Transmit pulse width | 4~20us | |
Receiving wave width |
500KHz |

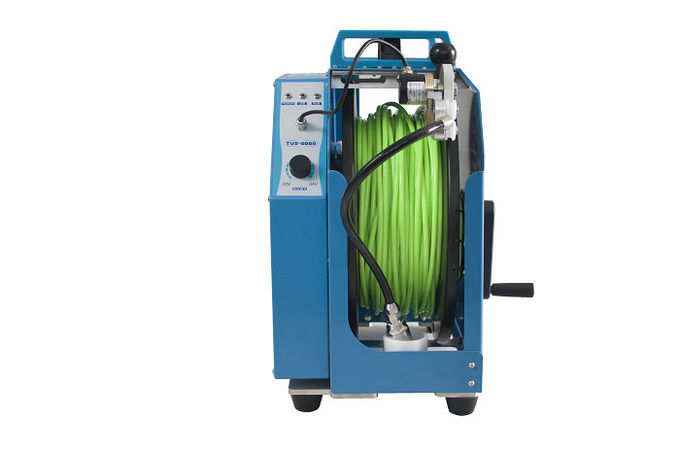

Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
