Name: | Sewer Lateral Inspection | Water Proof: | IP63 |
---|---|---|---|
Frequency: | 512Hz | Other Name: | Underground Pipe Inspection |
Advantage: | Real Time | Feature: | Built In Roll And Pitch Angle Sensors |
High Light: | digital inspection camera,sewer pipe inspection camera |

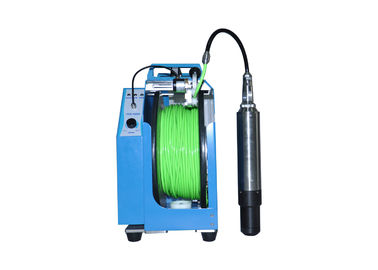

Real Time Sewer Lateral Inspection , OEM Underground Pipe Inspection
Sewer Lateral Inspection Features:
Sewer Lateral Inspection Application
Pipe Inspection is mainly used for industrial containers and pipe inspection, with zoom video, optional laser ranging, wireless transmission and other specialized functions. Apply to large-scale tanks, municipal drains inspection, tunnels, and … situations where ….record keeping are required.
Sewer Lateral Inspection Technical Parameter
Acoustic Parameter | Acoustical frequency |
2MHz |
Wave width |
1.1°(cone wave beam) | |
Lateral resolution |
0.5mm (Pipe radius 125mm) |
|
Max. inspection radius | 12m | |
Transmit pulse width | 4~20us | |
Receiving wave width |
500KHz |
Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
SonarProf Pipe Sonar Professional Analysis Software

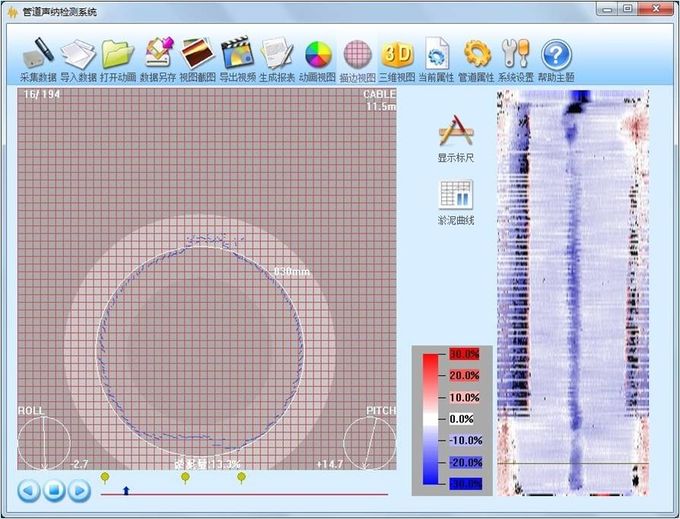

Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)

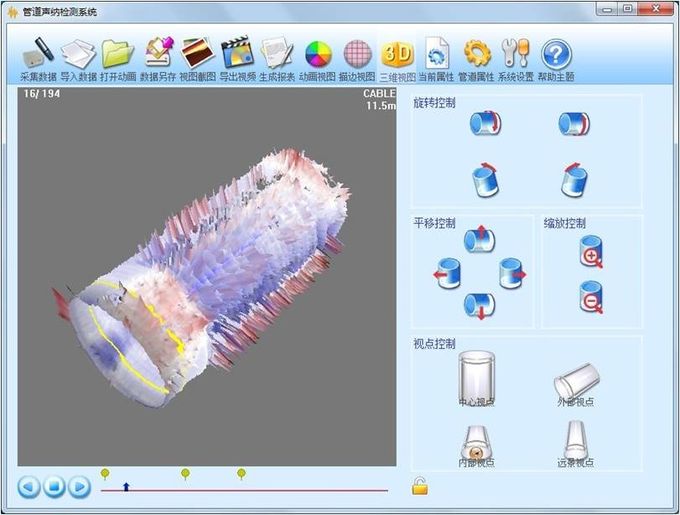

Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
