Waterproof Sonar Pipe Inspection 360 Degree Continuous Simultaneous Scan

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-6000
Minimum Order Quantity: Negotiation
Price: Negotiable
Delivery Time: 4-8 weeks
Supply Ability: 10 sets per months
Name: Sonar Pipe Inspection Feature: Waterproof
Acoustical Frequency: 2MHz Wave Width: 1.1°(cone Wave Beam)
Lateral Resolution: 0.5mm (Pipe Radius 125mm) Receiving Wave Width: 500KHz
High Light:

digital inspection camera


sewer pipe inspection camera

Waterproof Sonar Pipe Inspection 360 Degree Continuous Simultaneous Scan



TVS-6000 Sonar Pipeline Inspection System detects and pinpoints targets underwater by means of the principle of wave reflection. It, therefore, can perform pipeline inspection filled with liquid to determine the information of crack and debris in the pipe; and it is the most advanced device for pipeline inspection and assessment.

Sonar Pipe InspectionFeatures:

Complete 360 degree continuous simultaneous scan within 1s
Friendly software interface to operate readily
Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically

Sonar Pipe Inspection Technical Parameter


Acoustic Parameter
Acoustical frequency

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width

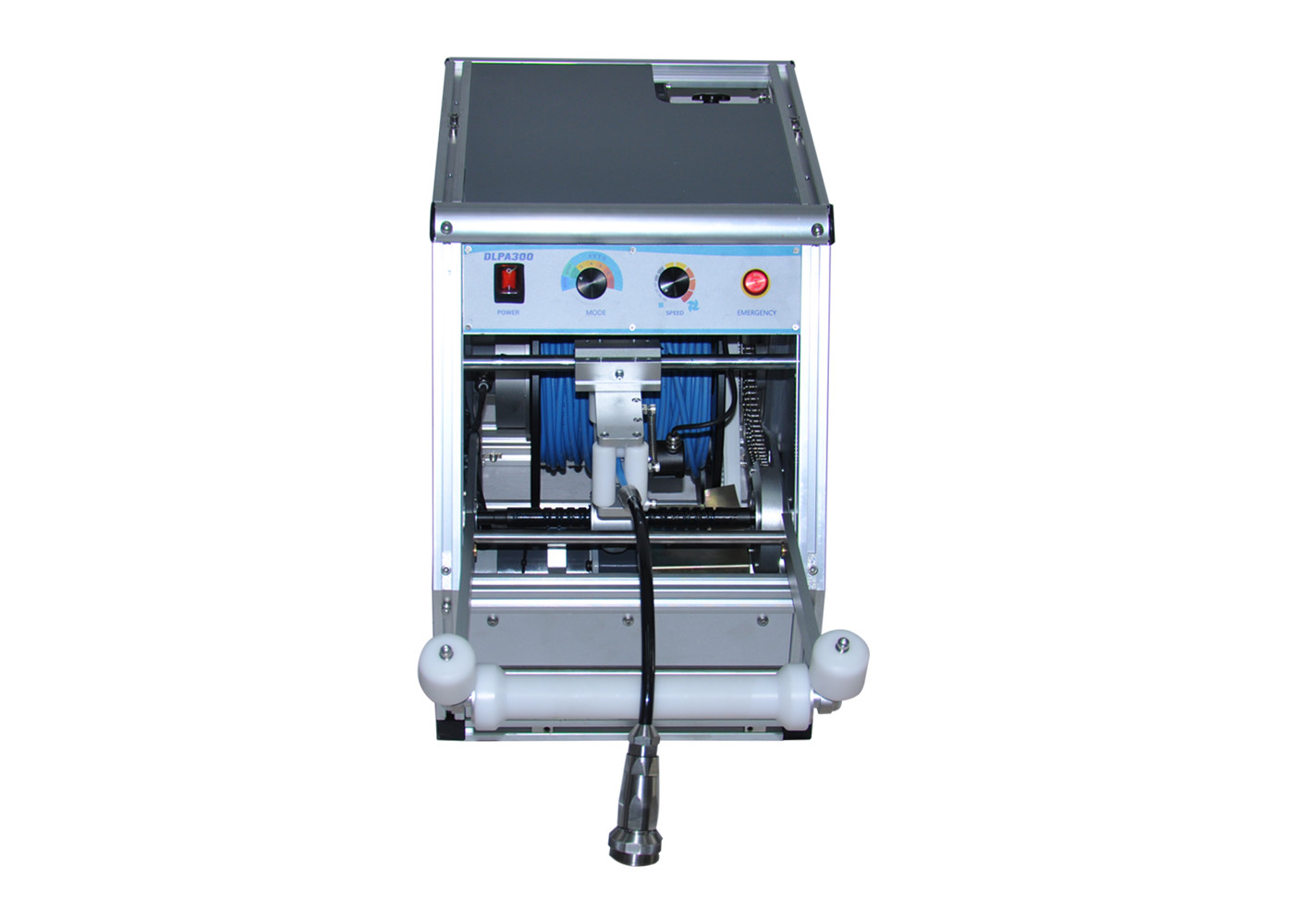

Manual Cable Drum:

Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63

SonarProf Pipe Sonar Professional Analysis Software

Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
