6000mm Sonar Pipe Inspection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Sonar Pipe Inspection | Inspection Range | 100-6000mm |
|---|---|---|---|
| Water Proof | IP63 | Frequency | 512Hz |
| Acoustical Frequency | 2MHz | Wave Width | 1.1°(cone Wave Beam) |
| Highlight | 6000mm sewer pipe inspection camera,IP63 pipeline inspection system,6000mm Sonar Pipe Inspection |
||
Product Description

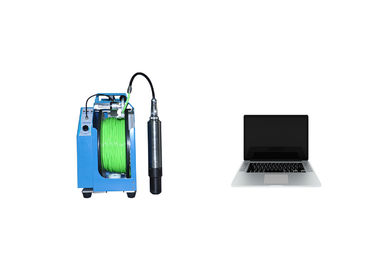

6000mm Sonar Pipe Inspection
Sonar Pipe Inspection Application:
Electric power, petrochemical, pressure vessel, rail transit, municipal administration, aerospace,Boiler inspection, ship building, automobile manufacturing, Mechanical Manufacturing, pipeline manufacturing, industrial pipeline, etc.
Sonar Pipe Inspection Features:
Friendly software interface to operate readily
Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically
Sonar Pipe Inspection Technical Parameter
| Acoustic Parameter | Acoustical frequency |
2MHz |
Wave width |
1.1°(cone wave beam) | |
Lateral resolution |
0.5mm (Pipe radius 125mm) |
|
| Max. inspection radius | 12m | |
| Transmit pulse width | 4~20us | |
Receiving wave width |
500KHz |
Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63
SonarProf Pipe Sonar Professional Analysis Software

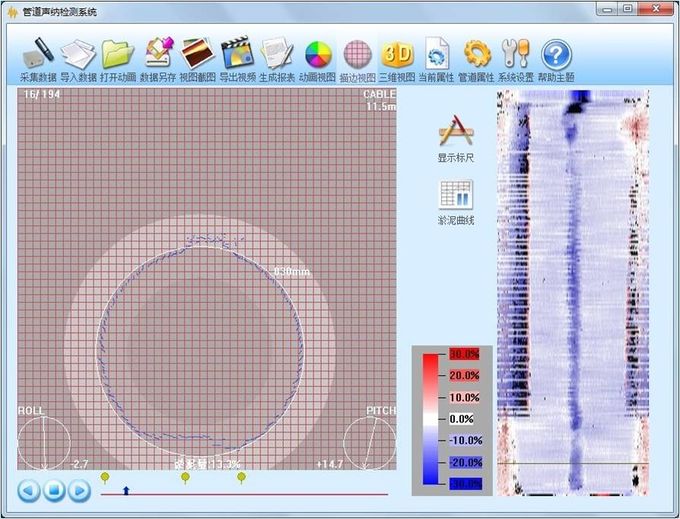

Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)

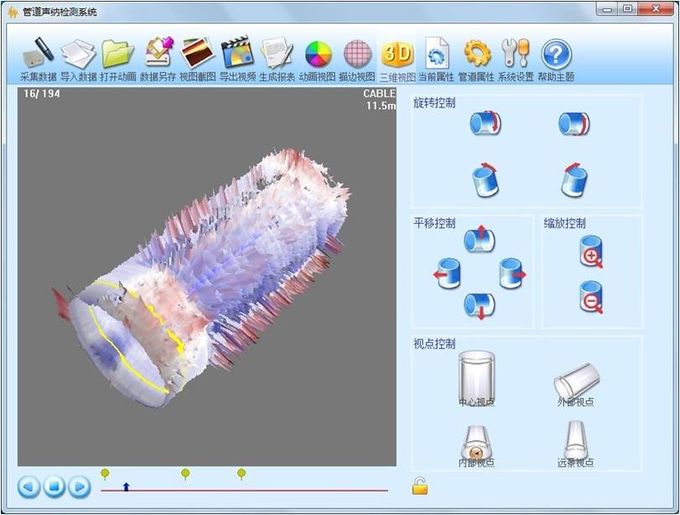

Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
