|Type:||Underground CCTV Pipe Inspection Equipment||Inspection Range:||300-2000mm|
|Control:||Joystick Or Controller||System:||Windows|
|Cable Drum:||Manual||Screen:||LCD Screen|
2000mm CCTV Pipe Inspection Equipment,
Underground CCTV Pipe Inspection Equipment,
2000mm cctv drain camera inspection
Underground 300-2000mm CCTV Pipe Inspection Equipment With LCD Screen
CCTV Pipe Inspection Equipment is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.
CCTV Pipe Inspection Equipment Features:
1. Anti-fogged camera lens
2. 360 ° rotate of camera
3. Windows laptop/controller
4. Brightless adjustable
CCTV Pipe Inspection Equipment Technical Parameter
|Pan&Tilt Camera JT2000||1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
|Cralwer TVS-800||1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

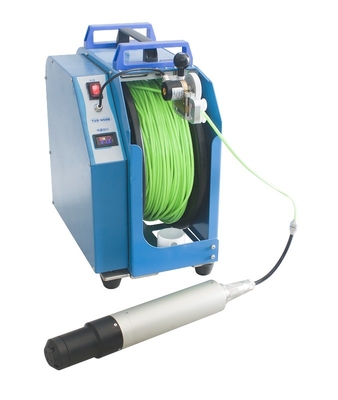

|Manual Cable Drum DLPM120||1,Manual cable drum
2,standard length: 120m
|Controller MK3||1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
|Standard Configuration||Optional Parts|

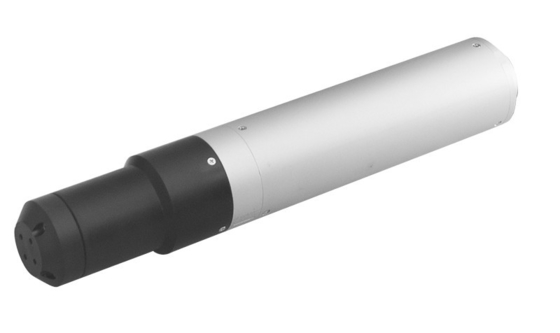

|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Manual cable drum||Automatic cable drum|
|Windows Laptop+JoyStick||PA500 portable movable power|
TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 200 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
