Underwater Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors

China Underwater  Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors supplier
Underwater  Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors supplier Underwater  Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors supplier Underwater  Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors supplier

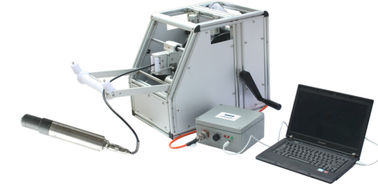

Large Image :  Underwater Sonar Pipe Inspection With Built In Roll And Pitch Angle Sensors

Product Details:

Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 4-8 weeks
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Pipe Diameter: 100-6000mm Water Proof: IP63
Name: Sonar Pipe Inspection System Acoustical Frequency: 2MHz
Wave Width: 1.1°(cone Wave Beam) Lateral Resolution: 0.5mm (Pipe Radius 125mm)

Underwater Sewer Pipe Sonar Inspection System Tvs-6000

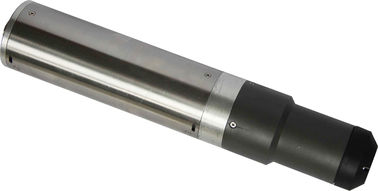

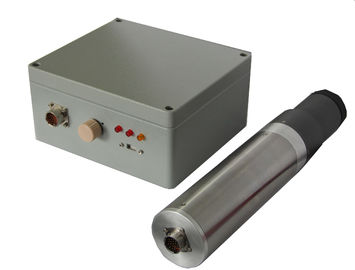

TVS-6000 Sonar Pipeline Inspection System detects and pinpoints targets underwater by means of the principle of wave reflection. It, therefore, can perform pipeline inspection filled with liquid to determine the information of crack and debris in the pipe; and it is the most advanced device for pipeline inspection and assessment.

Features:

Complete 360 degree continuous simultaneous scan within 1s
Friendly software interface to operate readily
Data and images saved in the hard disc
Built-in roll and pitch angle sensors
Built-in cable counter interface
Inspect pipe profile automatically

Sonar Technical Parameter



Acoustic Parameter
Acoustical frequency
2MHz

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width
500KHz



Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63


SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
