Robotic CCTV Pipe Inspection Equipment With Lightweight Manual Cable Reel

Lightweight Manual Cable Reel Sewerage Inspection Robot Drain Pipe Inspection System

Lightweight Manual Cable Reel Sewerage Inspection Robot Drain Pipe Inspection System is composed of

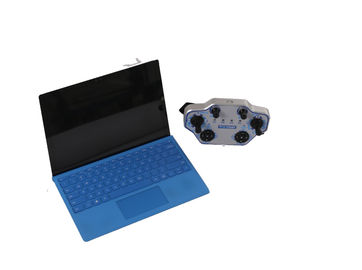

a joystick box, manual cable drum, crawler and camera. The manual cable drum is lightweight, it is easy for transportation and operation. The most important improvement is we use a Windows laptop not a traditional controller to control. It is equipped with a joystick, you can control both on laptop and joystick. The customer can use any type of Windows laptop as a controller

It is mainly used for pipe, sewer, drain inspectrion. The device is equipped with powerful lights and portable power supply. The longest cable can be 300 meters according to the requirements of customers. It is a waterproofed product that can be immersed into water up to 10 meters.

Features:

1. 360 ° rotate of camera

2. Windows laptop

3. Anti-fogged camera lens

4. Laptop and joystick control

5. Brightless adjustable

6. Light and easy transportation

System Configuration

Technical Parameter

Controller		1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size
Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m

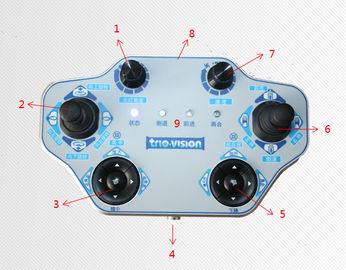

Joystick		(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected
