| Place of Origin: | China |
|---|---|
| Brand Name: | Trio-Vision |
| Model Number: | TVS-15 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | CARTON |
| Delivery Time: | 4-8 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20units per month |
| Certification: | CE,FCC, ISO9001 | Pipe Diameter: | 150-600mm |
|---|---|---|---|
| Operation System: | Windows, Wincan Inside | Camera Head: | Pan & Tilt |
| Report: | Inclination, Slope | Cable Drum: | Automatic, 300m |
| High Light: | cctv pipe inspection cameras,pipeline inspection robot |
||

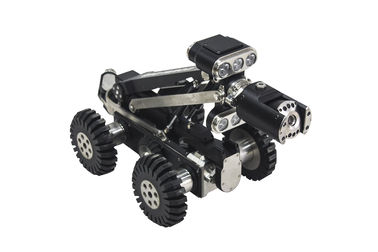

Mainline Crawler Drain Camera CCTV Sewer Survey Camera with PTZ Camera for 300mm to 2000mm Pipeline Inspection system is a newly designed crawler system, specially for US, UK and European market. It can inspect pipe diameter from 125-2000mm, use only one crawler to inspect the most of te pipes, reduce the cost. It is compoposed of a crawler, pan&tilt camera, automatic cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements.
The system is a product designed on the basis of industrial Windows system. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).
Features:
1. High Definition Camaera, 1920*1080P
2. Portable control unit
3. Windows operation system
4. Powerful crawler drive
5. Interchangeable parts
6. Laser scanning
7. Remote control App.
System Configuration
| Standard Configuration | Optional Parts |
| TVS15 crawler | CAM-70 camera |
| CAM-90 pan & tilt camera | JT360 fish-eye camera |
| Automatic cable drum | Manual cable drum |
| MK4 control unit | Wheel support |
| Manhole hook, tool box and other accesories | 10" wheel |
Technical Parameter
|
Control Unit MK4
|
1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
|
|
Pan&Tilt Camera CAM-90
|
1. Rotation: 360 degree horizontal, 270 degree vertical 2. 120x zooming, 10:1 optical, 12:1 digital 3. Auto focus, manual adjustment is allowed 4. Digital hidh definition, 1920*1080P 5. Camera lens anti-fogged 7. Laser gauge to measure the defect size |
|
Cralwer TVS-15
|
5. Sonde location: 33kHz
|
|
Automatic Cable Drum DLPA200HD
|
1. LCD display panel 2. Three kinds of working mode: auto, manual and auto retrieving only. 3. Standard cable length: 200m 4. Built-in wifi module, wireless tranmission 5. Cable counter meter and auto layering 6. Emergency stop
|
|
Fish-eye camera JT360
|
1. View360 degree sight inside the pipe.
|
| Wheel support |
assembed on the crawler to inpsect pipe diamter above 1000mm, equipped with 8" wheels or 10" wheels.
|
Remote Control APP.
The software can be installed into the laptop or tablet, controls the crawler wireless.
