| Place of Origin: | China |
|---|---|
| Brand Name: | Trio-Vision |
| Model Number: | TVS-6000 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 4-8 weeks |
| Supply Ability: | 10 sets per months |
| Name: | Sonar Pipe Inspection | Inspection Range: | 100-6000mm |
|---|---|---|---|
| Water Proof: | IP63 | Frequency: | 512Hz |
| Application: | Industrial Containers And Pipe Inspection | OEM: | Yes |
| High Light: | pipeline video inspection,digital inspection camera |
||

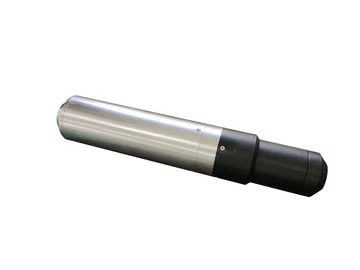

Laser Sonar Pipe Inspection For Industrial Containers And Pipe Inspection
Sonar Pipe Inspection Application:
Electric power, petrochemical, pressure vessel, rail transit, municipal administration, aerospace,Boiler inspection, ship building, automobile manufacturing, Mechanical Manufacturing, pipeline manufacturing, industrial pipeline, etc.
Sonar Pipe Inspection Features:

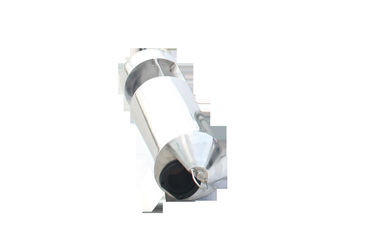

Sonar Probe Technical Parameter
| Acoustic Parameter | Acoustical frequency |
2MHz |
Wave width |
1.1°(cone wave beam) | |
Lateral resolution |
0.5mm (Pipe radius 125mm) |
|
| Max. inspection radius | 12m | |
| Transmit pulse width | 4~20us | |
Receiving wave width |
500KHz |
SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
