Accurate Measurement Sonar Pipe Inspection With Sonar Probe , Cable Coil

China Accurate Measurement Sonar Pipe Inspection With Sonar Probe , Cable Coil supplier

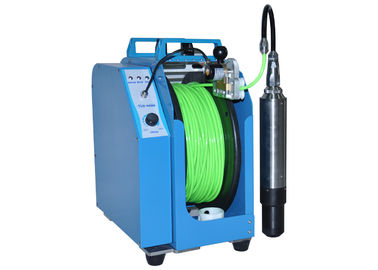

Large Image :  Accurate Measurement Sonar Pipe Inspection With Sonar Probe , Cable Coil

Product Details:

Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-6000

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Delivery Time: 4-8 weeks
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Name: Sonar Pipe Inspection Pipe Diameter: 100-6000mm
Application: Underwater Acoustical Frequency: 2MHz
Wave Width: 1.1°(cone Wave Beam) Feature: Accurate Measurement

Accurate Measurement Sonar Pipe Inspection With Sonar Probe , Cable Coil



Sonar Pipe Inspection application :



Sonar Pipe Inspection is widely used used for water well borehole inspection, engineering geology, hydrogeology, geological prospecting, mining department; applicable to vertical holes, horizontal holes and inclined depression angles, elevation holes, geological drilling and concrete drilling, etc.



Sonar Pipe Inspection Features:

Complete 360 degree continuous simultaneous scan within 1s
Friendly software interface to operate readily
Data and images saved in the hard disc
Built-in roll and pitch angle sensors

Sonar Pipe Inspection Parameter



Acoustic Parameter
Acoustical frequency
2MHz

Wave width
1.1°(cone wave beam)

Lateral resolution

0.5mm (Pipe radius 125mm)
Max. inspection radius 12m
Transmit pulse width 4~20us

Receiving wave width
500KHz



Manual Cable Drum:
Counter: high precision coder( ±0.1m), cable length calculation.
Layering: manual layering
Waterproof: IP63


SonarProf Pipe Sonar Professional Analysis Software
Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
Automatic reporting for high efficiency report preparation (IMG. 4)
