|Type:||CCTV Pipe Inspection Equipment||Inspection Range:||300-2000mm|
|Control:||Joystick Or Controller||Cable Drum:||Manual|
drain cctv equipment,
pipeline inspection robot
Wireless Control CCTV Pipe Inspection Equipment For Underground , Boiler
CCTV Pipe Inspection Equipment Introduction
CCTV Pipe Inspection Equipment is the smallest mainline inspection robot system. It is generally designed for Pipes DN 100-600 or 3.94“~23.62”. It is a all featured and compact sewer inspection robot. You can view record clear digital video, control crawler car movement, log observations, generate reports, and output the data or video to other display facilities.
With remarkably dedicated and experienced R&D engineers, we are able to provide all kinds of customized models. You can add side-scanning sonar, laser ranging, expandable backbone and camera lift mechanism. S100 works perfect with your existing crawler reel, control units and joysticks. The upgrading is very cheap and can be done in just 1minute.With option electric control cable reel, S100 CCTV Pipe Robot Inspection System Crawler Camera can travel as far as 300m (984’) into a pipeline.
With compact design and reliable quality, CCTV Pipe Robot Inspection System Crawler Camera lets you detect dangerous gas line cross-bores or oil tank leaking. Made with cutting-edge technology, CCTV Pipe Robot Inspection System is designed for serious video inspection for narrow sewer pipelines. Four 130mm diameter tires option, camera lift, Led illumination facilities guarantees a easy transform in less than 10 minutes to inspect pipes 4”~24”diameter. The made in Swiss heavy duty motor drive with intelligent steering system to navigate past obstacles, and anti-overturning design wheels climb offset easier than similar crawler from other producers.
CCTV Pipe Inspection Equipment Features:
1. Anti-fogged camera lens
2. 360 ° rotate of camera
3. Windows laptop/controller
4. Brightless adjustable
CCTV Pipe Inspection Equipment Technical Parameter
|Pan&Tilt Camera JT2000||1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
|Cralwer TVS-800||1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
|Manual Cable Drum DLPM120||1,Manual cable drum
2,standard length: 120m

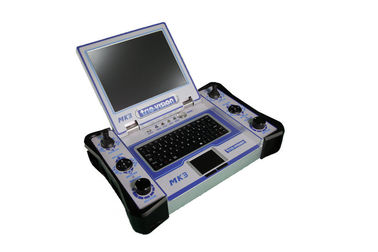

|Controller MK3||1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Manual cable drum||Automatic cable drum|
|Windows Laptop+JoyStick||PA500 portable movable power|
TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 200 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
