|Name:||Pipeline Inspection Robot||Cable Length:||120m|
|Inspection Range:||300-2000mm||Monitor:||Laptop Or Controller|
120m drain inspection camera,
Underwater pipe inspection crawler

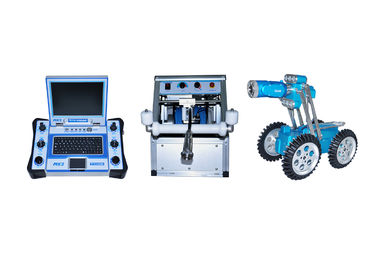

Underwater Wheeled Drain 120m Pipeline Inspection Robot
Pipeline Inspection Robot Introduction
Pipeline Inspection Robot is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.
Pipeline Inspection Robot Features:
1. Laptop or controller control
2. Multiple choices
3. Anti-fogged camera lens
4. 360 ° rotate of camera
Pipeline Inspection Robot Technical Parameter
|Controller||1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
|Pan&Tilt Camera JT2000||1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
|Cralwer TVS-800||1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
|Manual Cable Drum DLPM120||1,Manual cable drum
2,standard length: 120m
|Controller MK3||1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Manual cable drum||Automatic cable drum|
|Windows Laptop+JoyStick||PA500 portable movable power|
