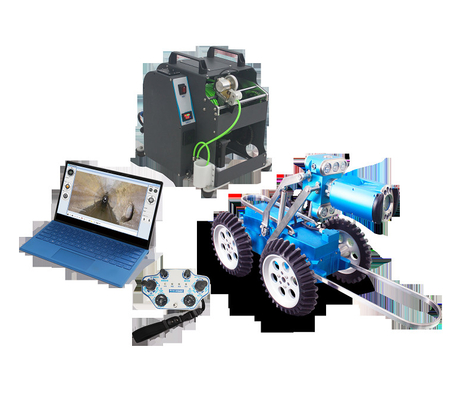

8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000E
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Name: Video Camera Sewer Line Inspection Cable Length: 120m
Inspection Range: 300-2000mm Screen: 8.4"
Camera Rotate: 360° Control: Joystick
Cable Drum: Manual Other Name: CCTV Crawler Camera
High Light:

Drain CCTV Crawler Camera

,

8.4" CCTV Crawler Camera

,

8.4" Video Camera Sewer Line Inspection

8.4" Drain CCTV Crawler Camera Video Camera Sewer Line Inspection



Video Camera Sewer Line Inspection Application:



Video Camera Sewer Line Inspection is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.



Technical Parameter of Video Camera Sewer Line Inspection



Controller 8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection 0 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection 1 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Cralwer TVS-800 8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection 2 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection 3 1,Manual cable drum
2,standard length: 120m


Joystick 8.4" drain CCTV Crawler Camera Video Camera Sewer Line Inspection 4

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected



About Us



Founded in 2006, Wuhan Trio-Vision Technology Co., Ltd. (hereinafter called "TVS") Is the exploiter in Chinese underground pipe inspection equipment industry. The company specialized in developing, manufacturing, sales and technology service of urban drainage pipe inspection and online inspection. With rapid development in recent years, the company has been the celebrated enterprise in underground pipe inspection product developing and manufacturing in both domestic and overseas.
