|Pipe Diameter:||250-2000mm||Cable Drum:||Automatic|
|Camera Heating:||Anti-fogged Heating Camera||Waterproof:||IP68|
cctv pipe inspection cameras,
drain cctv equipment

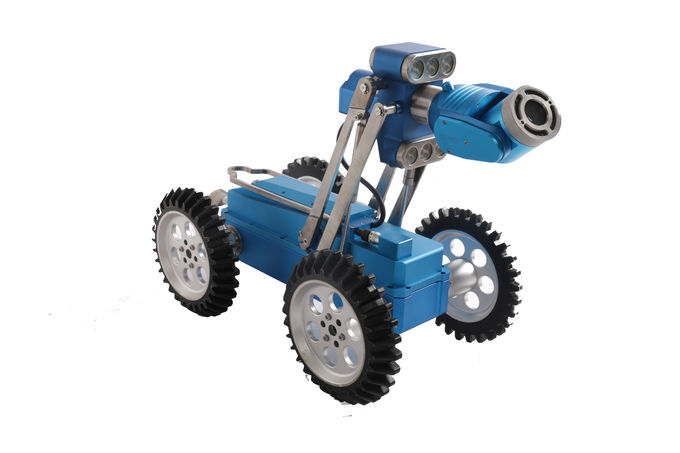

IP68 Waterproof Sewer Pipe Inspection Crawler Robot for DN 250mm-2000mm is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.
1. 360 ° rotate of camera
2. Anti-fogged camera lens
3. Brightless adjustable
4. Interchangeable parts
5. CANBUS system
6. One-key center camera
The system is compoposed of crawler, camera, cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements, it is suitable for 250-2000mm diameter pipes.
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT90 pan & tilt camera||JT360 fish-eye camera|
|Automatic cable drum||Manual cable drum|
|MK3 control unit||PA500 portable movable power|
|Manhole hook, tool bag and other accesories|
Control Unit MK3
1, Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2, Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3, Camera position, elevator position in Graphs
4, Inclination report in site.
5, System status, work parameter can be query.
Pan&Tilt Camera JT2000
1, 360 degree, no limited rotate
2, The lens heating can prevent fog
3, Camera light can be adjusted
4, Maximum Brightness upgrade 50%, More suitable for small diameter
5, Optional Laser, calibrate defect size
Waterproof to IP68
Working temperature: -10ºC~50ºC
Suitable pipe diameter: 250mm~2000mm
Drive: two DC motor
Elevator: electric elevator
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Automatic Cable Drum DLPA300
1,6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced
2,standard length: 200m,max. 300m
3,Automatic cable drum
Fish-eye camera JT360(OPTIONAL)
1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.
Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
