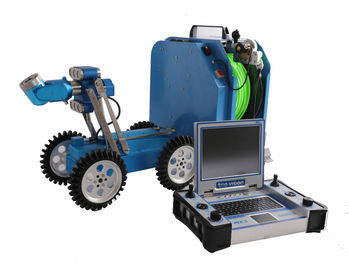

This system is mounted with intelligent 4 wheel drive as carrying platform, equipped with industry level high resolution color camera unit, motion detection units,the video recording terminal, and auxiliary power lighting source for clear and live video recording. It is a professional solution to inspect various hidden space, underwater, inflammable, explosive, radiation and other places of high-risk real-time detection.This product is now widely used in pipeline detection, mine exploration, tunnel acceptance, earthquake rescue,and widely welcome for stable working and easy control.

It is mainly used for pipe, sewer, drain inspectrion. The device is equipped with powerful lights and portable power supply. The longest cable can be 300 meters according to the requirements of customers. It is a waterproofed product that can be immersed into water up to 10 meters.

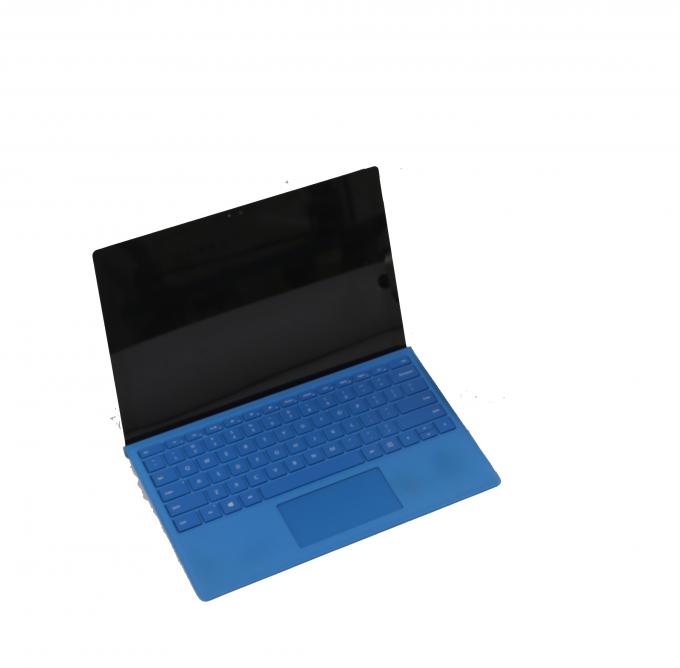

this system ontains a lightweight manual cable drum, it is easy for transportation and operation. The most important improvement is we use a Windows laptop not a traditional controller to control. It is equipped with a joystick, you can control both on laptop and joystick. The customer can use any type of Windows laptop as a controller

Features:

1. Laptop and joystick control

2. Light and easy transportation

3. Anti-fogged camera lens

4. 360 ° rotate of camera

5. Windows laptop

6. Brightless adjustable

Technical Parameter

Controller		1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size
Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m

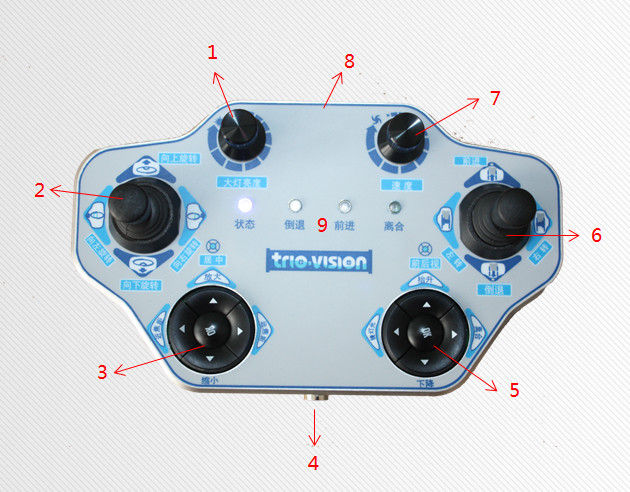

Joystick		(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected
