CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Certification: CE
Model Number: TVS-2000E
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Name: Robotic Pipe Inspection Camera Inspection Range: 300-2000mm
Monitor: Laptop/tablet Camera Rotate: 360°
Type: Pipeline Inspection Camera System Cable Drum: Automatic
High Light:

cctv pipe inspection cameras

,

pipeline inspection robot

CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System



Robotic Pipe Inspection Camera Application :



petrochemical, municipal, urban construction, national defense and other fields, lightweight and portable, efficient detection.

Suitable for small pipeline inspection,smallest pipeline diameter 130mm. distance(0-200m) .

Robotic Pipe Inspection Camera Feature

1. Splash-proof,anti-corrosion,can be used in different place.

2. Forward ,backward,turn freely and adjustable speed.

3. With ambient light and adjustable illumination.

4. Lens 360°rotation and reversal without death angle.

5. Focus length is adjustable ,no limited by space size.

6. Video,photo can be set at will.

7. Video can be storage and replay.

8. The machine is easy to clean, low cost maintenance.



Robotic Pipe Inspection Camera Technical Parameter



Controller CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 0 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 1 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

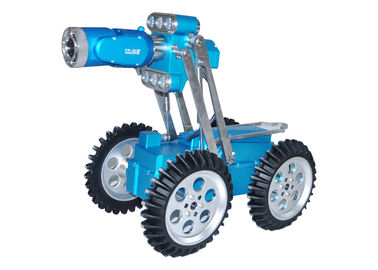

Cralwer TVS-800 CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 2 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 3 1,Manual cable drum
2,standard length: 120m


Joystick CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 4

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop PA500 portable movable power
Joysitck





CCTV Robotic Pipe Inspection Camera / Pipeline Inspection Camera System 5
