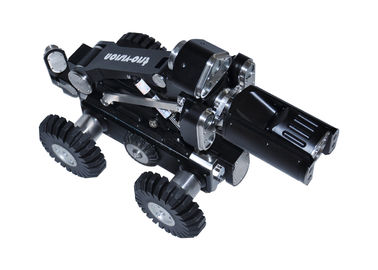

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot

  • Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot
Place of Origin China
Brand Name Trio-Vision
Certification CE,FCC, ISO9001
Model Number TVS-15
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details CARTON
Delivery Time 4-8 weeks
Payment Terms T/T
Supply Ability 20units per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cctv Pipe Inspection Cameras Operation System Windows, Wincan Inside
Camera Head Pan & Tilt Report Inclination, Slope
Cable Drum Automatic, 300m Type Pipeline Inspection Robot
High Light

cctv pipe inspection cameras

,

pipeline inspection robot
Leave a Message
Product Description

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot



Cctv Pipe Inspection Cameras Brief introduction:



CCTV Pipe Inspection Robot is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.



Cctv Pipe Inspection Cameras Features:



1. High Definition Camaera, 1920*1080P

2. Portable control unit

3. Windows operation system

4. Powerful crawler drive

5. Interchangeable parts

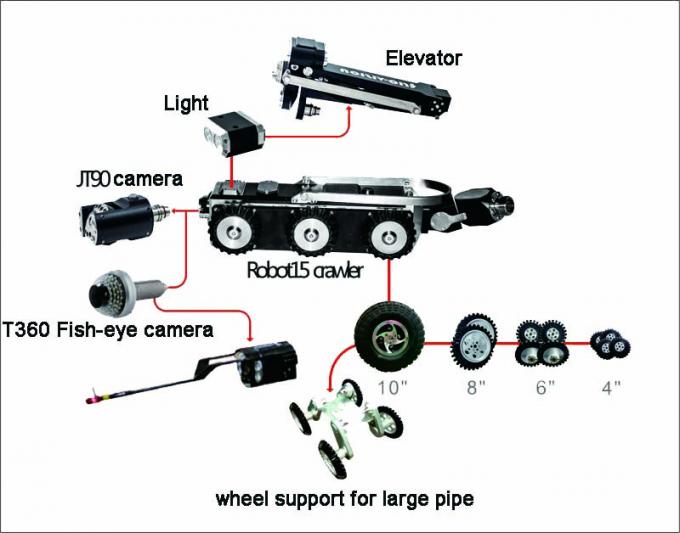

Cctv Pipe Inspection Cameras Configuration



Standard Configuration Optional Parts
TVS15 crawler CAM-70 camera
CAM-90 pan & tilt camera JT360 fish-eye camera
Automatic cable drum Manual cable drum
MK4 control unit Wheel support
Manhole hook, tool box and other accesories 10" wheel





Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 0


Technical Parameter

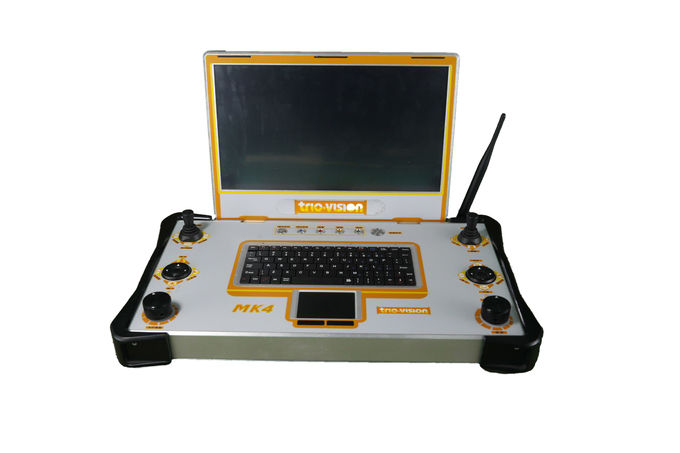

Control Unit MK4

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 1





1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2. Win10 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3. Camera position, elevator position in Graphs
4. Inclination report in site.
5. System status, work parameter can be query.

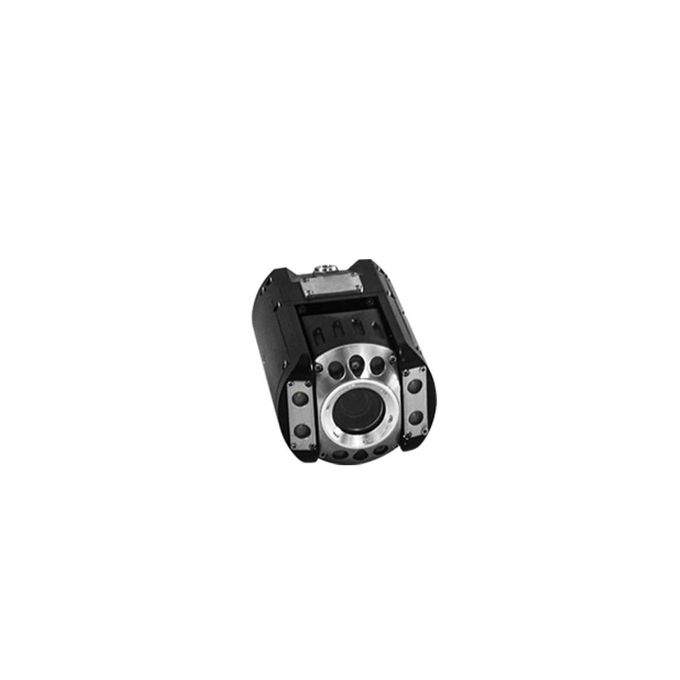

Pan&Tilt Camera CAM-90Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 2





1. Rotation: 360 degree horizontal, 270 degree vertical

2. 120x zooming, 10:1 optical, 12:1 digital

3. Auto focus, manual adjustment is allowed

4. Digital hidh definition, 1920*1080P

5. Camera lens anti-fogged
6. Laser scanning the pipe diameter and distortion

7. Laser gauge to measure the defect size
8. Camera light can be adjusted to adapt different pipes.

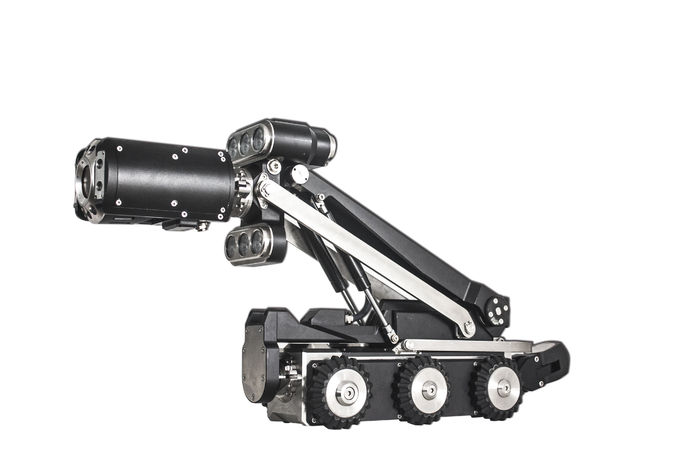

Cralwer TVS-15

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 3


1. Waterproof to IP68
2. Working temperature: -10ºC~50ºC
3. Suitable pipe diameter: 125mm~2000mm
4. Drive: two DC motor, six wheels

5. Sonde location: 33kHz
6. Inclination: mesurement scope ±45 degree
7. Climbing: max. climb degree about 50° according to diffrerent pipe status
8. High definition rear sight camera and light: inspect crawler backwards and cable retreiving

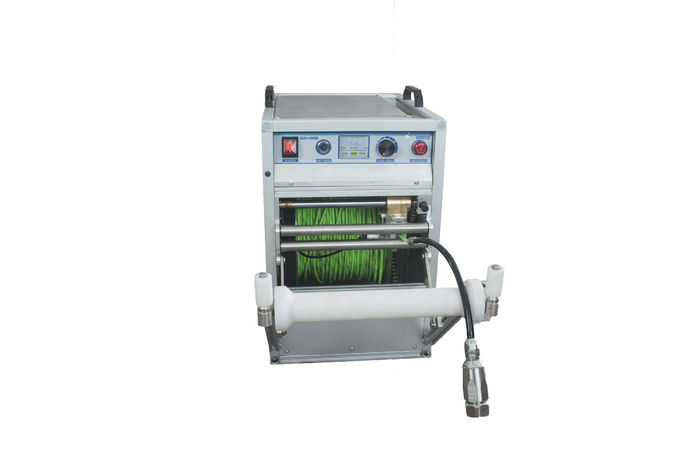

Automatic Cable Drum DLPA200HD

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 4





1. LCD display panel

2. Three kinds of working mode: auto, manual and auto retrieving only.

3. Standard cable length: 200m

4. Built-in wifi module, wireless tranmission

5. Cable counter meter and auto layering

6. Emergency stop



Fish-eye camera JT360

Fast Cctv Pipe Inspection Cameras / High Resolution Pipeline Inspection Robot 5





1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.


Wheel support





assembed on the crawler to inpsect pipe diamter above 1000mm, equipped with 8" wheels or 10" wheels.
