| Place of Origin: | China |
|---|---|
| Brand Name: | Trio-Vision |
| Model Number: | TVS-2000E |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | CARTON |
| Delivery Time: | 4-8 weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20units per month |
| Name: | CCTV Pipe Inspection Equipment | Drum: | Manual, Lightweight |
|---|---|---|---|
| Control: | Joystick And Compuuter | Transmission: | Wifi |
| Cable Length: | 120m | Advanatge: | Good Synchronization |
| High Light: | cctv pipe inspection cameras,drain cctv equipment |
||

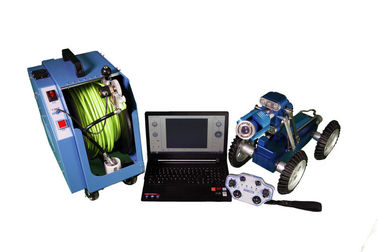

Windows Laptop CCTV Pipe Inspection Equipment Good Synchronization
CCTV Pipe Inspection Equipment introduction:
CCTV Pipe Inspection Equipment is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.
CCTV Pipe Inspection Equipment Features:
1. Multifunctional
2. 360 degree rotation of camera
3. Windows operation system
4. High Definition Camaera, 1920*1080P
5. Interchangeable parts
6. Laser scanning
CCTV Pipe Inspection Equipment Parameters
| Standard Configuration | Optional Parts |
| TVS800 crawler | JT60 axial camera |
| JT-2000 pan & tilt camera | JT360 fish-eye camera |
| Manual cable drum | Automatic cable drum |
| Windows Laptop | PA500 portable movable power |
| Joysitck |
CCTV Pipe Inspection Equipment Details
| Controller |  |
1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time. |
| Pan&Tilt Camera JT2000 | |
1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size |
| Cralwer TVS-800 | |
1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving |

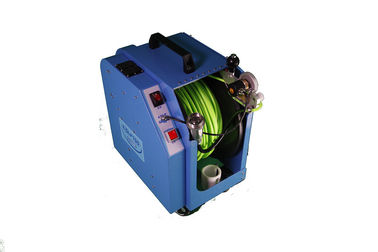

| Manual Cable Drum DLPM120 | |
1,Manual cable drum 2,standard length: 120m |
| Joystick | |
(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected |
