| Place of Origin: | China |
|---|---|
| Brand Name: | Trio-Vision |
| Model Number: | TVS-2000E |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | CARTON |
| Delivery Time: | 4-8 weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20units per month |
| Name: | Pipe Inspection Crawler Camera | Application: | Petrochemical |
|---|---|---|---|
| Drum: | Lightweight | Control: | Joystick And Compuuter |
| Transmission: | Wifi | Cable Length: | 120m |
| High Light: | cctv pipe inspection cameras,drain cctv equipment |
||

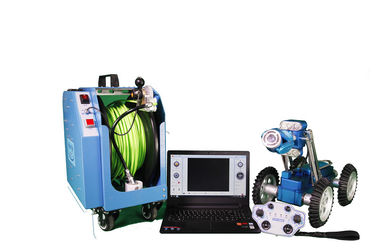

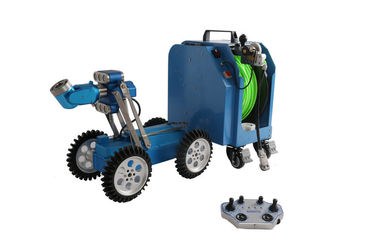

Petrochemical Sewer Pipe Inspection Crawler Camera , Pipeline Robot Inspection
Sewer Pipe Inspection Crawler Camera Application :
Sewer Pipe Inspection Crawler Camera is used in petrochemical, municipal, urban construction, national defense and other fields, lightweight and portable, efficient detection.
Suitable for small pipeline inspection,smallest pipeline diameter 130mm. distance(0-200m) .
1. Splash-proof,anti-corrosion,can be used in different place.
2. Forward ,backward,turn freely and adjustable speed.
3. With ambient light and adjustable illumination.
4. Lens 360°rotation and reversal without death angle.
5. Focus length is adjustable ,no limited by space size.
6. Video,photo can be set at will.
Sewer Pipe Inspection Crawler Camera Technical Parameter
| Controller |  |
1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time. |
| Pan&Tilt Camera JT2000 | |
1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size |
| Cralwer TVS-800 | |
1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving |
| Manual Cable Drum DLPM120 | |
1,Manual cable drum 2,standard length: 120m |
| Joystick | |
(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected |
