|Name:||CCTV Pipe Inspection Equipment||Length:||120m|
|Inspection Range:||300-2000mm||Monitor:||Laptop Or Controller|
|System:||Windows||Control:||Joystick Or Controller|
|Cable Drum:||Manual||Feature:||Light Weight|
drain cctv equipment,
pipeline inspection robot
Light Weight CCTV Pipe Inspection Equipment With Manual Cable Drum
CCTV Pipe Inspection Equipment Key Function
1. Light weight
The whole machine is light weight: light weight master control, light weight cable reel, and light weight crawler;
PC control: use laptop (tablet) as a host to control crawler;
2. Fast and Easy to Assembly
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3. Good synchronization
Good synchronization: synchronization display of the before and after video screens;
HD highlight: high definition camera with highlight combination light source;
Stable performance: the whole machine is waterproof and explosion-proof;
Little effort with no worries : easy to disassemble, and master control has zero failure;
CCTV Pipe Inspection Equipment Technical Parameter
|Controller||1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
|Pan&Tilt Camera JT2000||1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

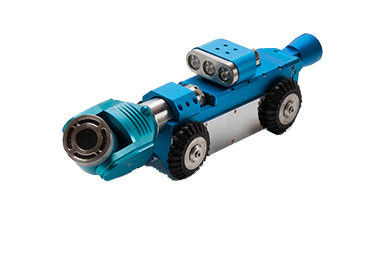

|Cralwer TVS-800||1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
|Manual Cable Drum DLPM120||1,Manual cable drum
2,standard length: 120m
|Controller MK3||1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.
CCTV Pipe Inspection Equipment Configuration
|Standard Configuration||Optional Parts|
|TVS800 crawler||JT60 axial camera|
|JT-2000 pan & tilt camera||JT360 fish-eye camera|
|Manual cable drum||Automatic cable drum|
|Windows Laptop+JoyStick||PA500 portable movable power|
