360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000A
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Name: Pipe Crawler Robot Cable Length: 120m
Inspection Range: 300-2000mm Monitor: Laptop Or Controller
System: Windows Control: Joystick Or Controller
Cable Drum: Manual Camera: 360 ° Rotate Camera
High Light:

drain cctv equipment

,

pipeline inspection robot

360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment

Pipe Crawler Robot Introduction

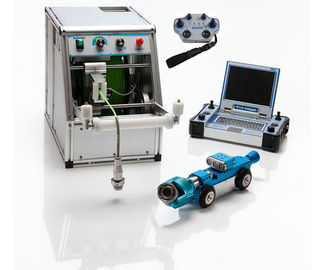

Pipe Crawler Robot is composed of crawler, lens, cable reel and the main controller. Thereinto, crawler can be overlapped with different models of lenses (i.e., rotary lens, direct-view lens, fish-eye lens) to response the operation orders of the main controller after connecting the cable reel with the main controller, such as crawler's advance, reverse, turning, stopping and speed adjustment; the lens bracket's lifting, fall, lighting adjustment; lens's horizontal or vertical rotation, focusing, magnification change, forward and backward switching, etc. During the testing, the main controller can display and record images from the lens and state information of the creeper in time, input the remark information on the touchscreen.

Pipe Crawler Robot Features:

1. Laptop or controller control
2. Multiple choices
3. Anti-fogged camera lens
4. 360 ° rotate of camera

Pipe Crawler Robot Technical Parameter


Controller360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment 01. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment 11,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

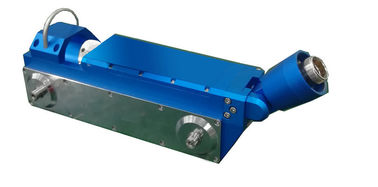

Cralwer TVS-800360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment 21. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment 31,Manual cable drum
2,standard length: 120m


Controller MK3360 ° Rotate Camera Pipe Crawler Robot / OEM Pipe Inspection Equipment 41. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.


Pipe Crawler Robot Configuration

Standard ConfigurationOptional Parts
TVS800 crawlerJT60 axial camera
JT-2000 pan & tilt cameraJT360 fish-eye camera
Manual cable drumAutomatic cable drum
Windows Laptop+JoyStickPA500 portable movable power
Controller MK3
