High Definition CCTV Pipe Inspection Equipment Controller Control

Basic Information
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000A
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Name: CCTV Pipe Inspection Equipment Cable Length: 120m
Inspection Range: 300-2000mm Monitor: Laptop Or Controller
System: Windows Control: Joystick Or Controller
Cable Drum: Manual Feature: High Definition
High Light:

drain cctv equipment

,

pipeline inspection robot

High Definition CCTV Pipe Inspection Equipment Controller Control



CCTV Pipe Inspection Equipment Introduction

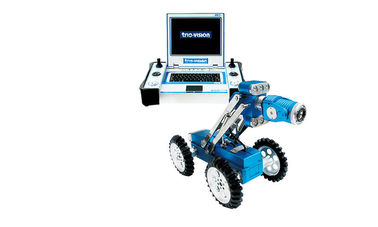

CCTV Pipe Inspection Equipment , the customer can choose either laptop or controller to control the crawler, they can work together also.It makes a great advantage for inpsection on-site customers. The Lightweight manual cable drum is easy for transportation and operation.



CCTV Pipe Inspection Equipment Features:



1. Laptop or controller control

2. Multiple choices

3. Anti-fogged camera lens

4. 360 ° rotate of camera

5. Windows laptop/controller



CCTV Pipe Inspection Equipment Technical Parameter



Controller High Definition CCTV Pipe Inspection Equipment Controller Control 0 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 High Definition CCTV Pipe Inspection Equipment Controller Control 1 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

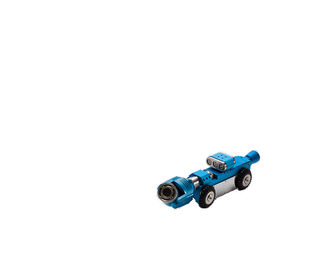

Cralwer TVS-800 High Definition CCTV Pipe Inspection Equipment Controller Control 2 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 High Definition CCTV Pipe Inspection Equipment Controller Control 3 1,Manual cable drum
2,standard length: 120m


Controller MK3 High Definition CCTV Pipe Inspection Equipment Controller Control 4 1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3,Camera position, elevator position in Graphs
4,Inclination report in site.
5,System status, work parameter can be query.



System Configuration

Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop+JoyStick PA500 portable movable power
Controller MK3





High Definition CCTV Pipe Inspection Equipment Controller Control 5





Our Team



The company has set up Marketing, R&D, Machining, Administration, Finance, Purchasing, QC, After-Sales Departments, owns employees over 50, and all kinds of equipments over 20 sets, among it, the machining department owns a serial of machining equipments: Three-headed CNC (VMC serial), digital control lathe (CK serial), digital control miller, common lathe, common miller etc. The company also introduced and applied sophisticated instruments like 3D printer to prove design. The abundant manufacturing and machining equipments provides the source power to our product design, quantity production and fast OEM/ODM customer made solutions.
