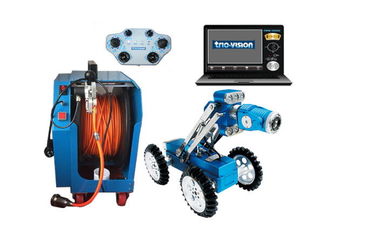

CCTV Sewer Inspection Crawler Introduction

CCTV Pipe Inspection Equipment is a multi-functional pipe inspection camera with optional multiple auxiliary parts.Designed for factories and municipal construction department to inspect and maintain all range of pipelines,and capable of being a research assistant robot in Institutions.

CCTV Sewer Inspection Crawler Application:

Robotic Sewer Camera is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.

CCTV Sewer Inspection Crawler Technical Parameter

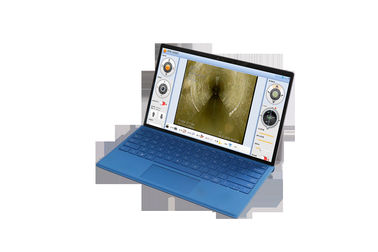

Controller		1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size
Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

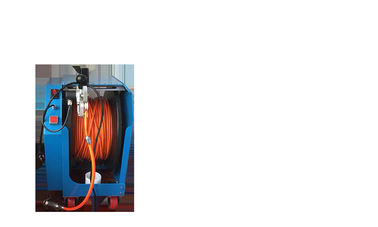

Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m
Joystick		(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected
