| Place of Origin: | China |
|---|---|
| Brand Name: | Trio-Vision |
| Model Number: | TVS-2000E |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | CARTON |
| Delivery Time: | 4-8 weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20units per month |
| Name: | CCTV Pipe Inspection Equipment | Feature: | Lightweight |
|---|---|---|---|
| Inspection Range: | 300-2000mm | Control: | Joystick |
| Camera Rotate: | 360° | ||
| High Light: | drain cctv equipment,pipeline inspection robot |
||
Lightweight CCTV Pipe Inspection Equipment With Wireless Control
CCTV Pipe Inspection EquipmentIntroduction
CCTV Pipe Inspection Equipment is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.
CCTV Pipe Inspection Equipment Features:
1. Lightweight
2. Light and easy transportation
3. Anti-fogged camera lens
4. 360 ° rotate of camera
CCTV Pipe Inspection Equipment Technical Parameter

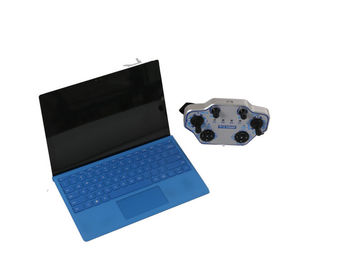

| Controller |  | 1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. |
| Pan&Tilt Camera JT2000 | | 1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size |
| Cralwer TVS-800 | | 1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status |

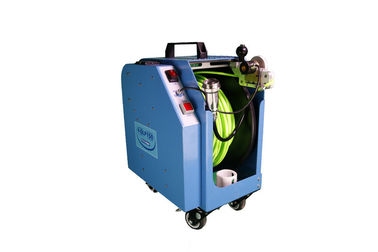

| Manual Cable Drum DLPM120 | | 1,Manual cable drum 2,standard length: 120m |

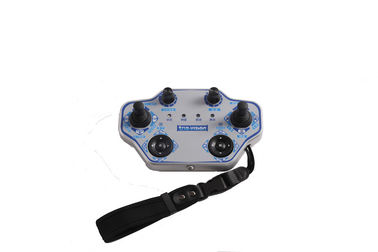

| Joystick | | (1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB |

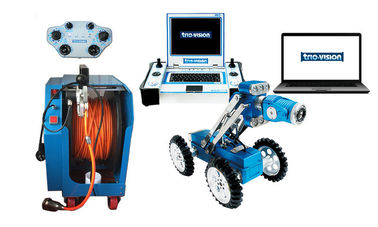

CCTV Pipe Inspection Equipment Configuration
| Standard Configuration | Optional Parts |
| TVS800 crawler | JT60 axial camera |
| JT-2000 pan & tilt camera | JT360 fish-eye camera |
| Manual cable drum | Automatic cable drum |
| Windows Laptop | PA500 portable movable power |
| Joysitck |
